AP Racing by Essex Radi-CAL Competition Brake Kit (Rear CP9450/340mm)- 9" Ford Custom Rear End Applications

Description:

AP Racing by Essex Radi-CAL Competition Brake Kit (Rear CP9450/340mm)- 9" Ford Custom Rear End Applications

Part #: 13.01.10071

Brand: Essex & AP Racing

• This kit is intended for custom builds and may require additional modifications to your vehicle
• Designed specifically to fit Detroit Speed's 9'' Ford Full Floater rear axle setups with a Torino-style flange (2.5'' offset)
• Bolt pattern on disc hat dual-drilled for GM (5 x 4 3/4'') and Ford (5 x 4 1/2'') wheels
• Performance rear brake upgrade for track-driven pro-touring and restomod builds
• Every component designed to withstand the heat of extensive racetrack use
• 340x28mm 60 vane heavy duty AP Racing J Hook discs

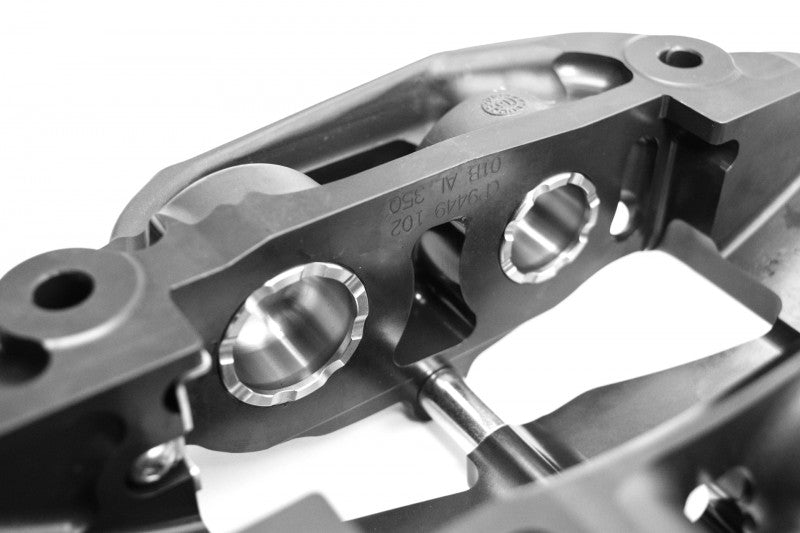

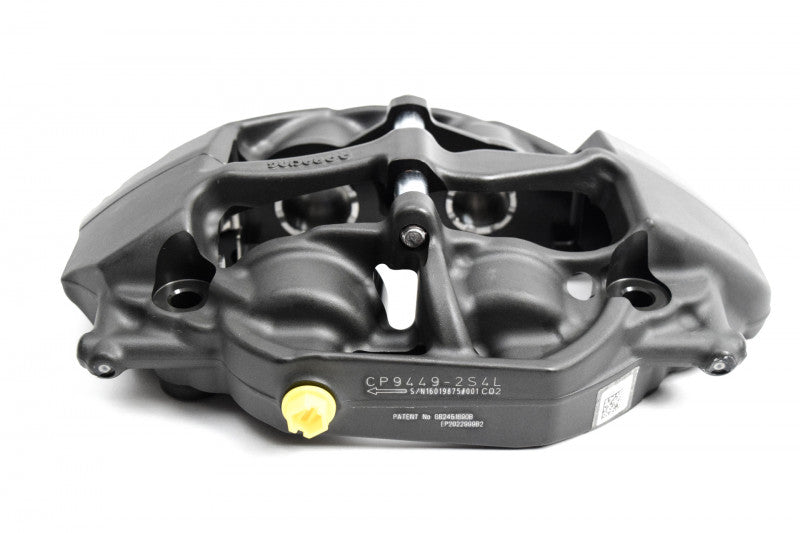

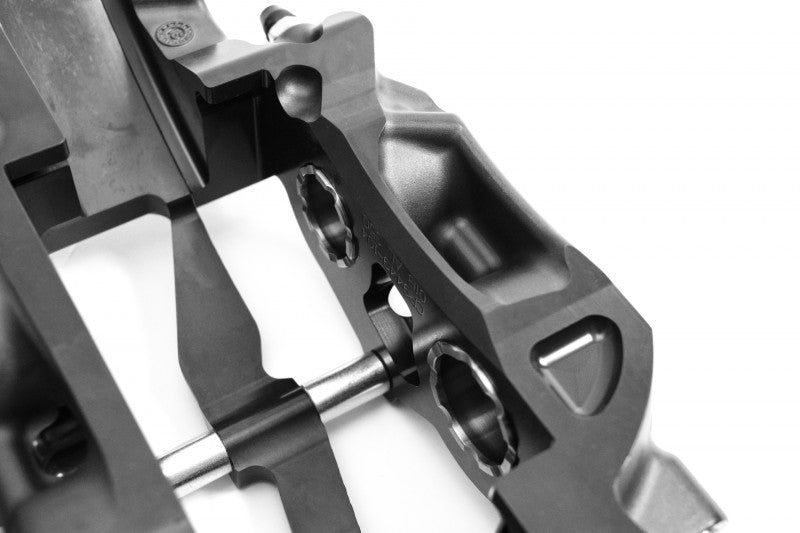

• AP Racing CP9449 Radi-CAL four piston calipers
• Brake lines are NOT included, because of the wide range of possible vehicle applications. However, Essex can offer Spiegler stainless lines with custom length, color, and fitting options for an additional cost
• Piston diameters: 27mm x 2, 31mm x 2
• Multiple piston size options are available

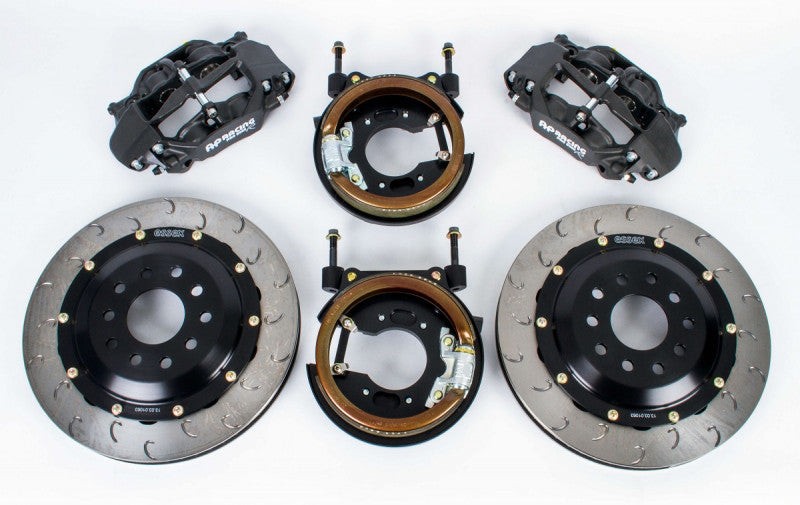

WHAT'S IN THE BOX?

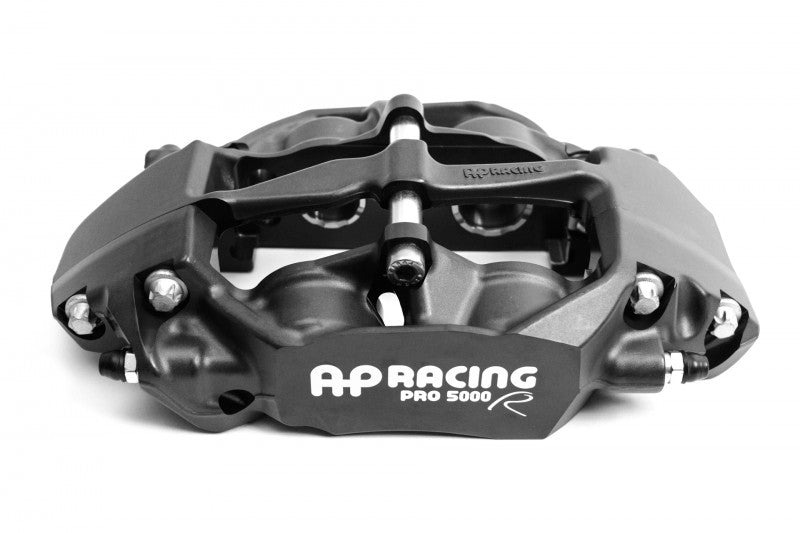

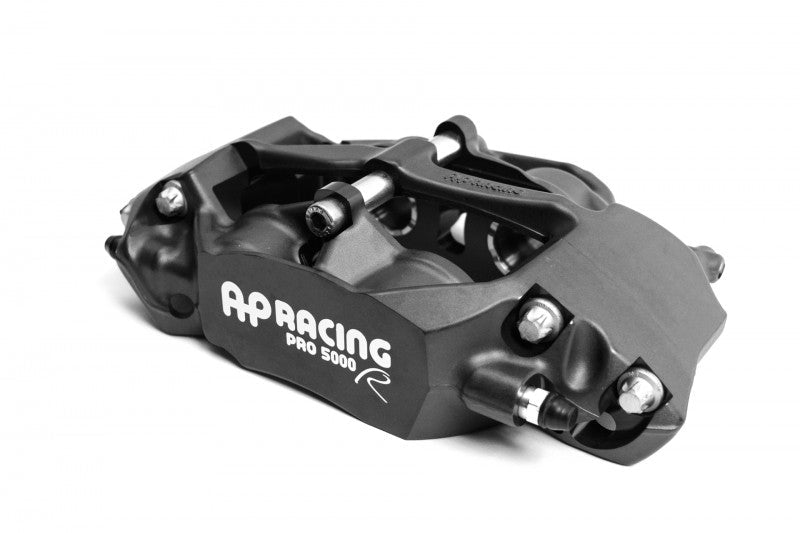

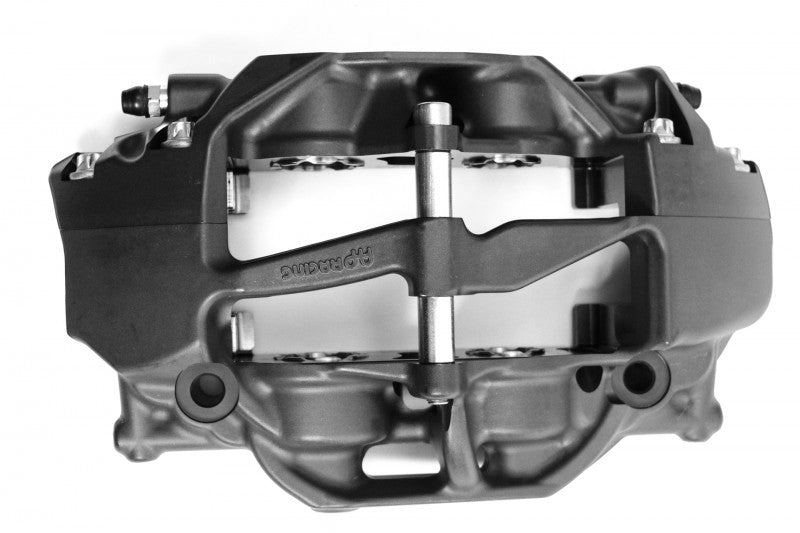

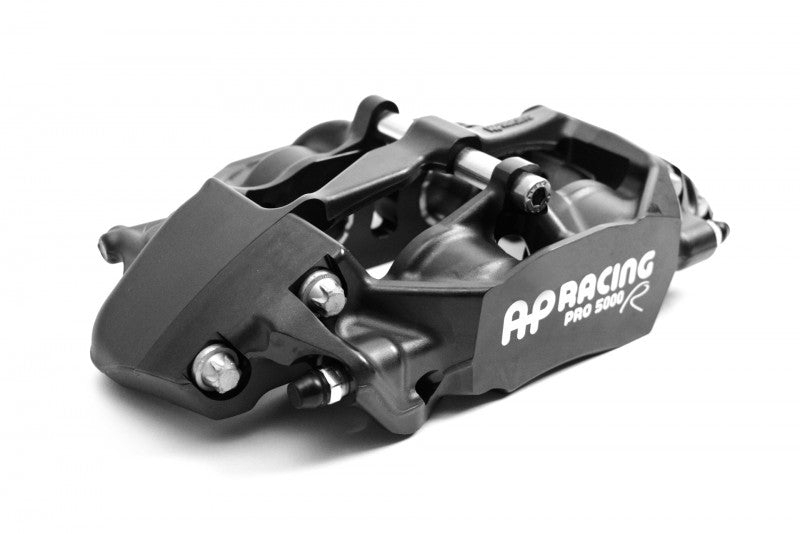

• One pair AP Racing CP9450 Radi-CAL Pro5000R racing calipers
• One pair 340x28mm AP Racing heavy duty J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
• One pair billet aluminum axle plates with parking brake assemblies and caliper mounting brackets
• Due to variances in axles/hubs, extra shims are included to center the caliper on the disc
• Brake lines are NOT included, because of the wide range of possible vehicle applications. However, Essex can offer Spiegler stainless lines with custom length, color, and fitting options for an additional cost

• Detailed installation instructions

• Brake pads are NOT included with our system. Racing brake pads are a highly personal choice. Many manufacturers include a set of inexpensive, low quality pads with their brake kits. Rather than artificially inflating the price of our system with a set of pads you probably don't want anyway, we've decided to remove the cost from our system and allow our customers to choose the pads that best suit their needs/wants. When purchasing our kit, you are able to choose one set of front pads at a substantial discount vs. the retail price. Please use the drop-down menu to select your pads.


Fitments:
