Description:
AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9668/390mm)- Gen.6 Camaro, Cadillac ATS-V & CTS-V (V3)
Part #: 13.01.10112-ENP
Brand: Essex & AP Racing
Complete front ENP (Electroless Nickel Plated) AP Racing by Essex Radi-CAL Competition Brake Kit for the Gen.6 Camaro, Cadillac ATS-V & CTS-V (V3):
- Shaves approximately 14 lbs. of unsprung weight from the nose vs. the OEM SS 1LE brake system, and approximately 24 lbs. vs. the ZL1 1LE brakes.

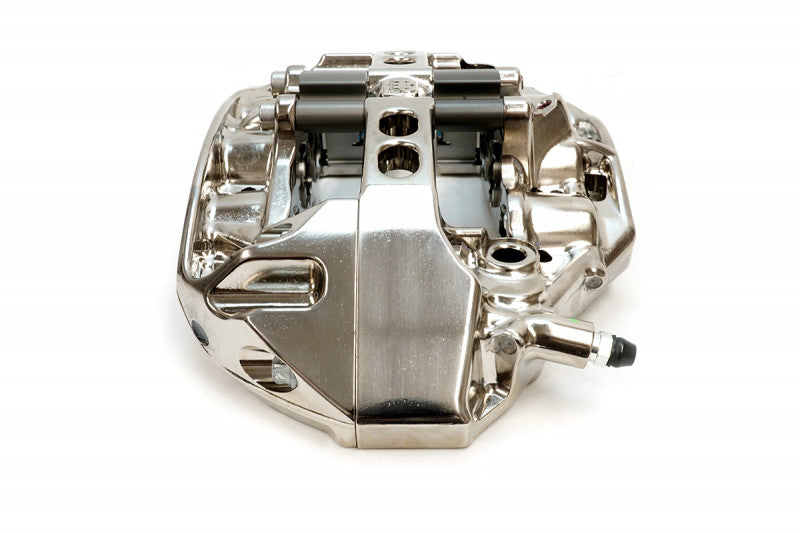

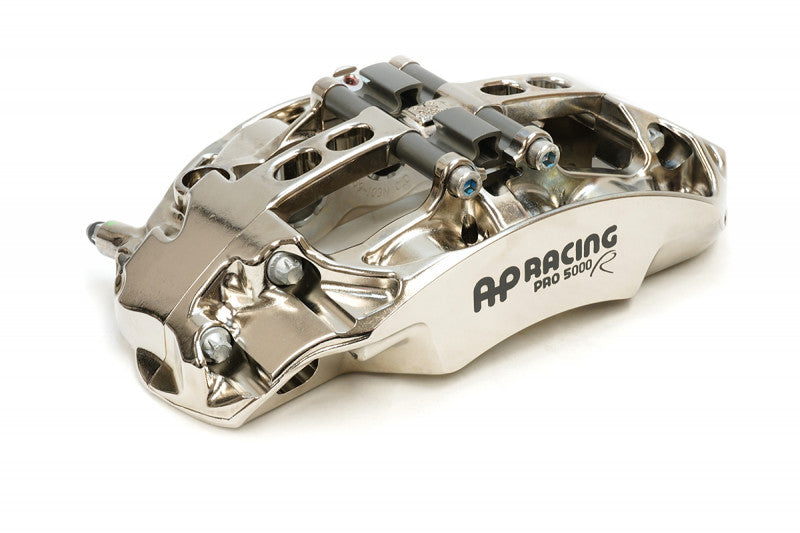

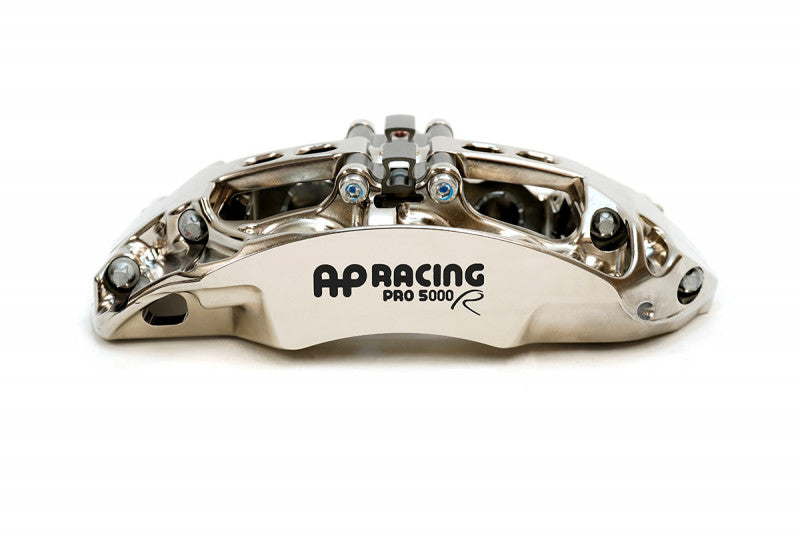

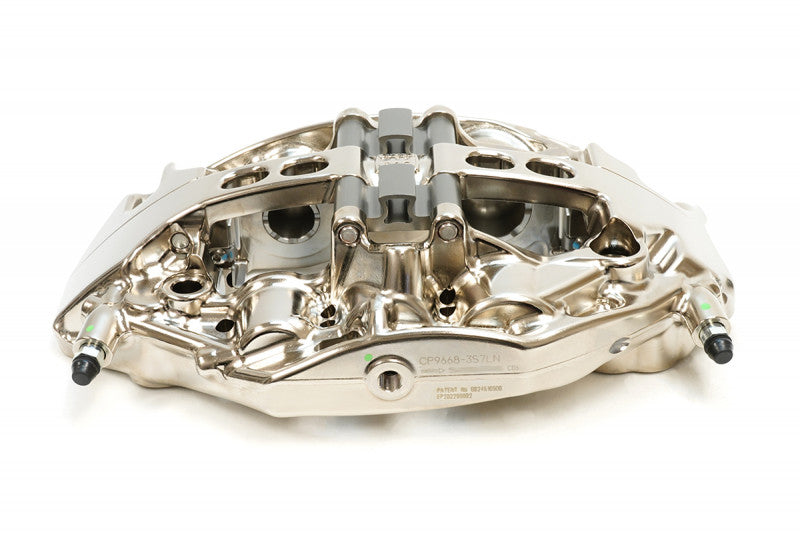

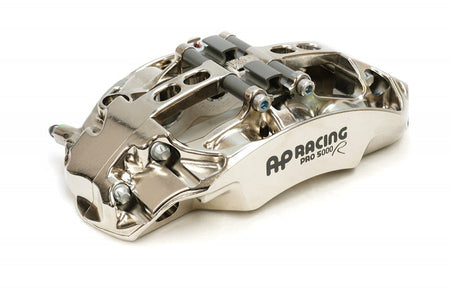

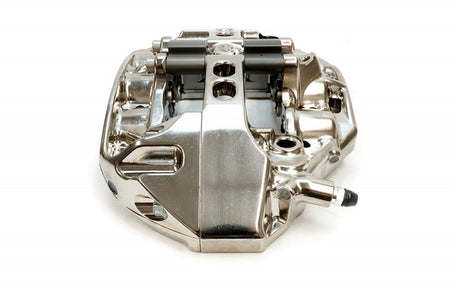

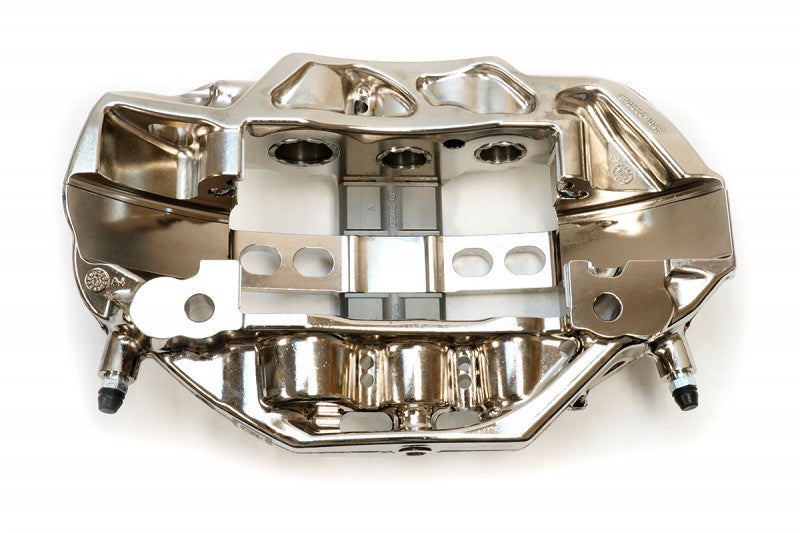

- Features AP Racing CP9668 Radi-CAL Pro5000R six piston calipers that use 25mm (1 inch) thick pads
- 390 x 36mm, 72 vane AP Racing iron discs
- Every component designed to resist the heat of extended track sessions
- Pistons sized properly to allow for integration with OEM master cylinder and ABS system while maintaining proper brake bias.
- Designed to work with either the OEM rear brakes or our matching rear AP Racing by Essex Radi-CAL Competition Kit.
WHAT'S IN THE BOX?
- One pair AP Racing CP9668 Radi-CAL Pro5000R six piston calipers in ENP (Electroless Nickel Plated) finish
- One pair 390x36mm AP Racing CP4284, 84 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
- One pair caliper mounting brackets and hardware
- One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
- Detailed installation instructions
- Brake pads are NOT included with our system. Racing brake pads are a highly personal choice. Many manufacturers include a set of inexpensive, low quality pads with their brake kits. Rather than artificially inflating the price of our system with a set of pads you probably don't want anyway, we've decided to remove the cost from our system and allow our customers to choose the pads that best suit their needs/wants.
- Pad Tension Clips (frequently referred to as anti-rattle clips) are NOT included with our Competition Kits, but we do offer them as an option if you're concerned about NVH. One of the great benefits of the AP Racing calipers in our system is that they are designed to accommodate pads from a wide range of manufacturers. Each manufacturer builds their pads with specifications that are slightly different. As such, pads from different manufacturers, or even from different batches, won't always fit in the calipers in exactly the same manner. Some pads are a snug fit, while others may rattle around and produce noise. The Essex Designed Pad Tension Kit is designed to dramatically reduce pad movement inside the caliper, along with just about all resulting noise.
Notes:
- Fits 19" OEM
- Brake pads are NOT included with our system
- Each caliper requires one Pad Tension Kit. If you need enough tension blocks for both of your calipers, you need to order two of these kits!
Fitments:
| Make |
Model |
Submodel |
Years |
| Chevrolet |
Camaro |
- |
2016-2023 |
| Cadillac |
ATS-V |
- |
2016-2019 |
| Cadillac |
CTS-V |
- |
2016-2019 |
