AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Rear CP9450/340mm)- 9" Ford Custom Rear End Applications

Description:

AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Rear CP9450/340mm)- 9" Ford Custom Rear End Applications

Part #: 13.01.10071-ENP

Brand: Essex & AP Racing

• This kit is intended for custom builds and may require additional modifications to your vehicle
• Designed specifically to fit Detroit Speed's 9" Ford Full Floater rear axle setups with a Torino-style flange (2.5" offset)
• Bolt pattern on disc hat dual-drilled for GM (5 x 4 3/4") and Ford (5 x 4 1/2") wheels
• Performance rear brake upgrade for track-driven pro-touring and restomod builds
• Every component designed to withstand the heat of extensive racetrack use
• 340x28mm 48 vane heavy duty AP Racing J Hook discs

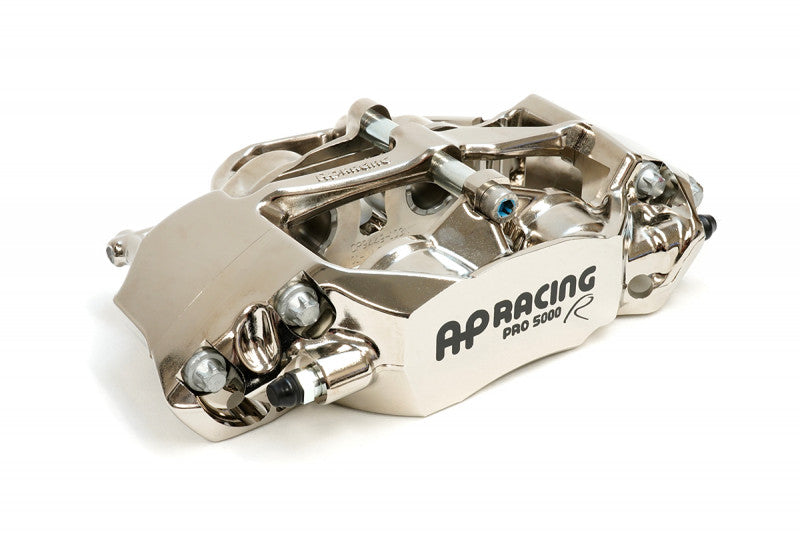

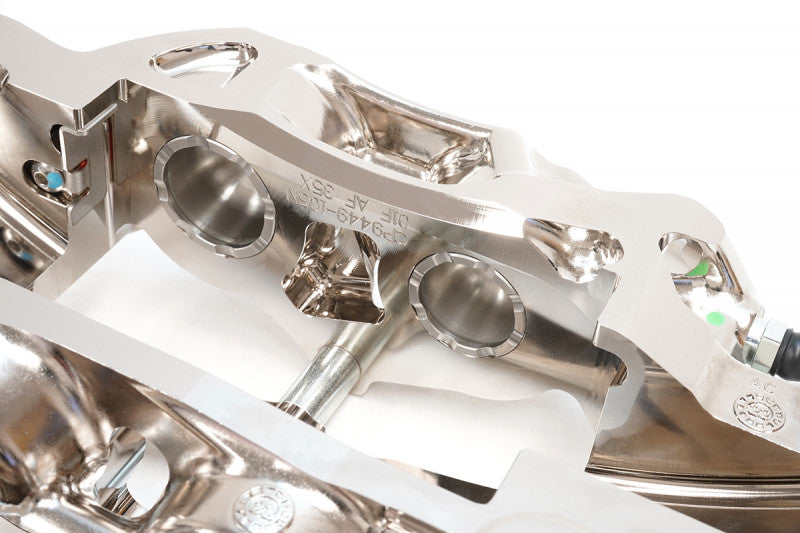

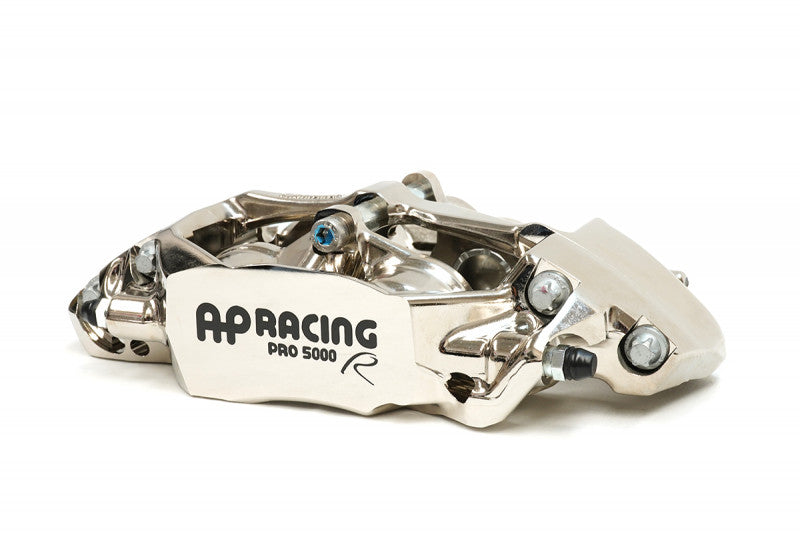

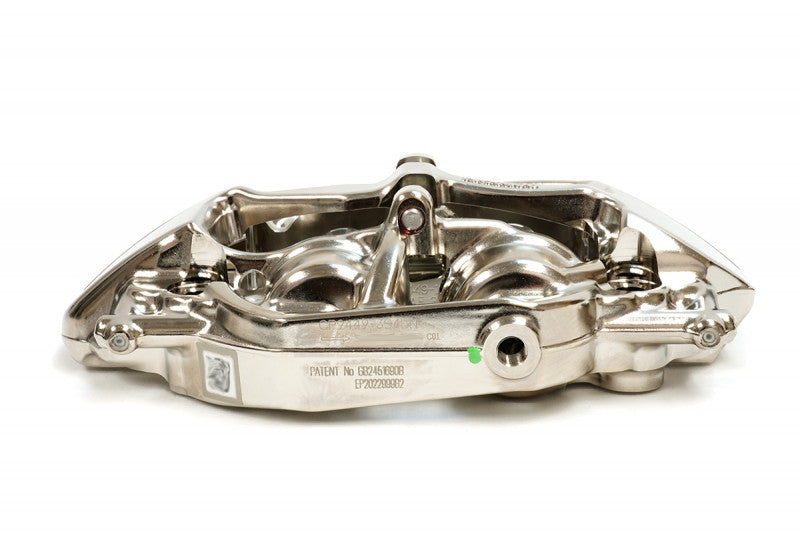

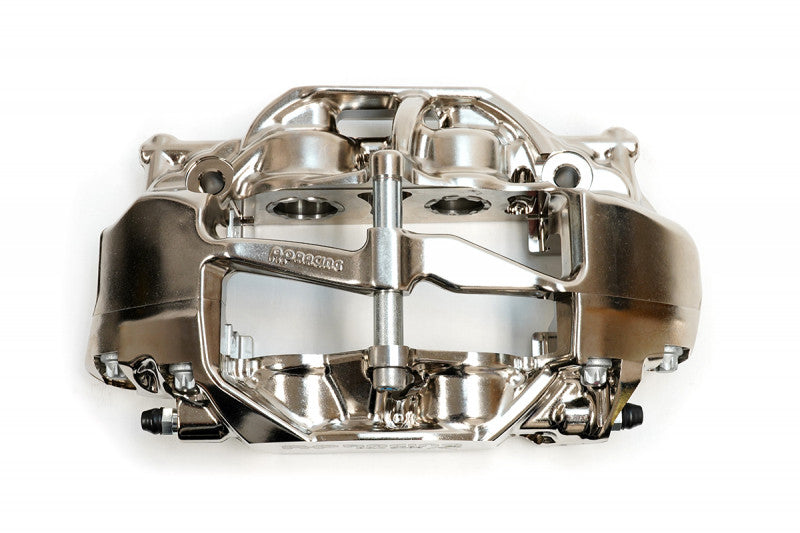

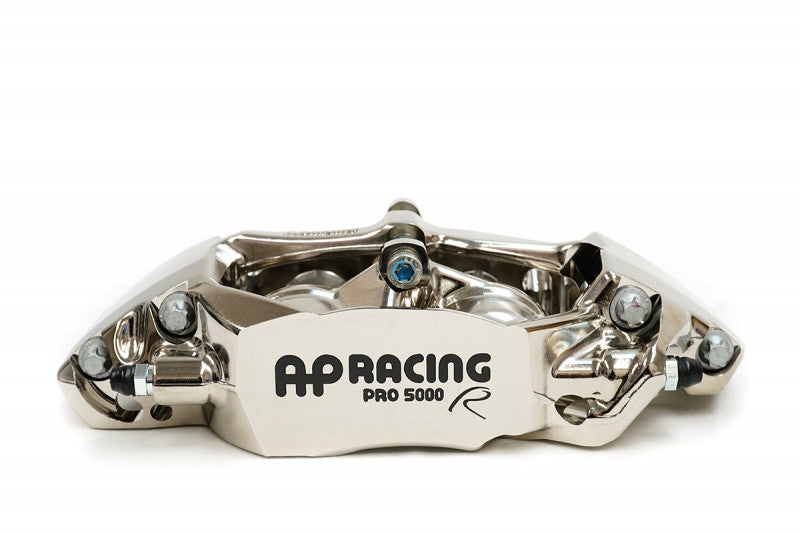

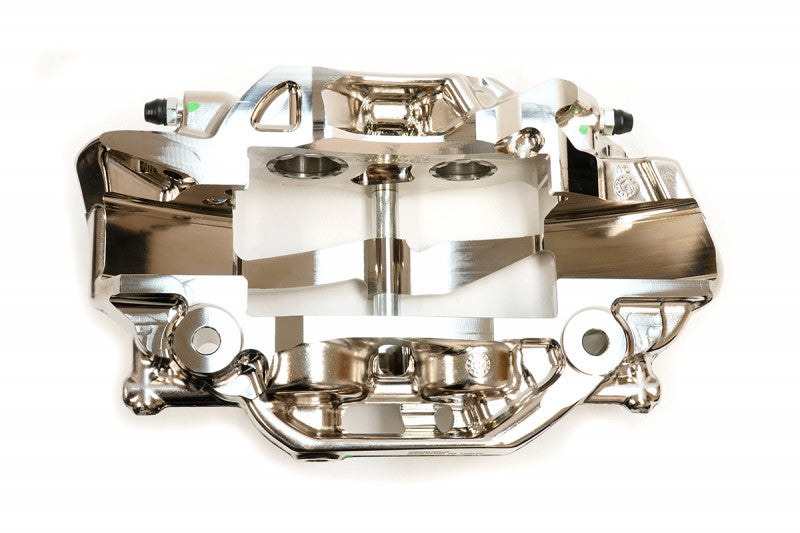

• AP Racing CP9450 Radi-CAL four piston calipers
• Jewel-like ENP caliper finish is incredibly durable and easy to clean
• Piston diameters: 27mm x 2, 31.8mm x 2
• Multiple piston size options are available

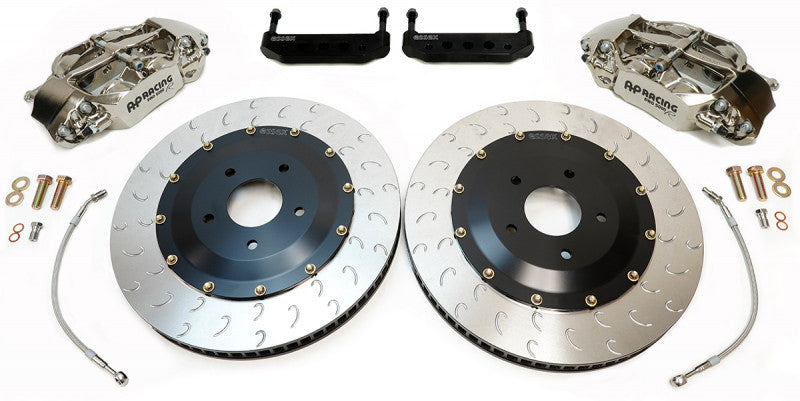

WHAT'S IN THE BOX?

• One pair AP Racing CP9450 Radi-CAL Pro5000R racing calipers in ENP Finish (Electroless Nickel Plated)
• One pair 340x28mm AP Racing heavy duty J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
• One pair billet aluminum axle plates with parking brake assemblies and caliper mounting brackets
• Due to variances in axles/hubs, extra shims are included to center the caliper on the disc
• Brake lines are NOT included, because of the wide range of possible vehicle applications.
• Detailed installation instructions
• Brake pads are NOT included with our system. Racing brake pads are a highly personal choice. Many manufacturers include a set of inexpensive, low quality pads with their brake kits. Rather than artificially inflating the price of our system with a set of pads you probably don't want anyway, we've decided to remove the cost from our system and allow our customers to choose the pads that best suit their needs/wants.
• Pad Tension Clips (frequently referred to as anti-rattle clips) are NOT included with our Competition Kits, but we do offer them as an option if you're concerned about NVH. One of the great benefits of the AP Racing calipers in our system is that they are designed to accommodate pads from a wide range of manufacturers. Each manufacturer builds their pads with specifications that are slightly different. As such, pads from different manufacturers, or even from different batches, won't always fit in the calipers in exactly the same manner. Some pads are a snug fit, while others may rattle around and produce noise. The Essex Designed Pad Tension Kit is designed to dramatically reduce pad movement inside the caliper, along with just about all resulting noise.
