Description:
AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Rear CP9661/355mm)- Corvette C8 Z51
Part #: 13.01.10130-ENP
Brand: Essex & AP Racing
Complete Rear ENP (Electroless Nickel Plated) AP Racing by Essex Radi-CAL Competition Brake Kit for the Chevrolet Corvette C8 (2020+) Z51 only

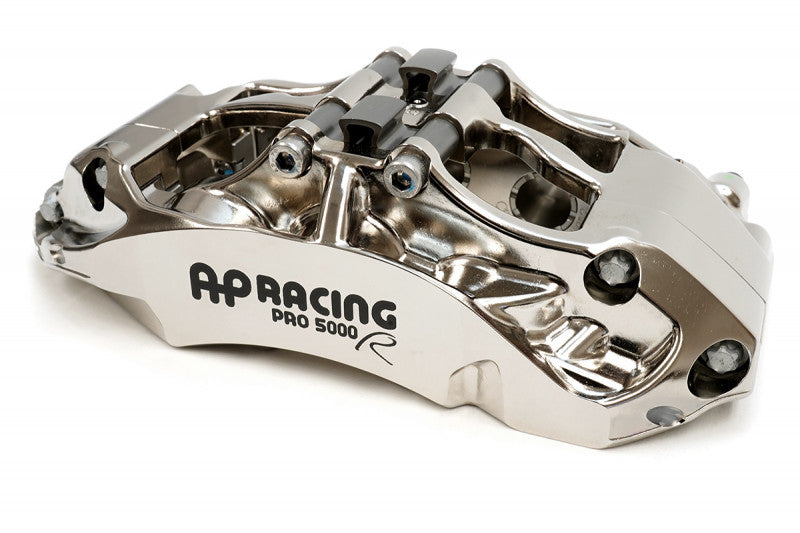

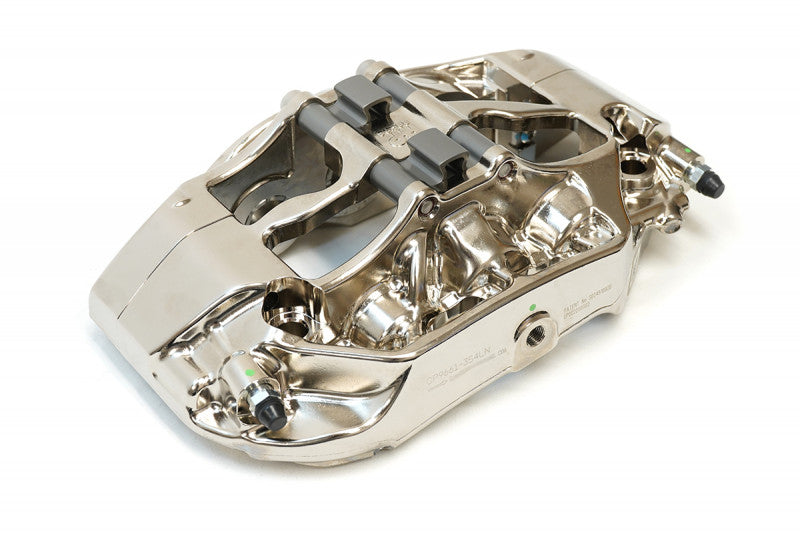

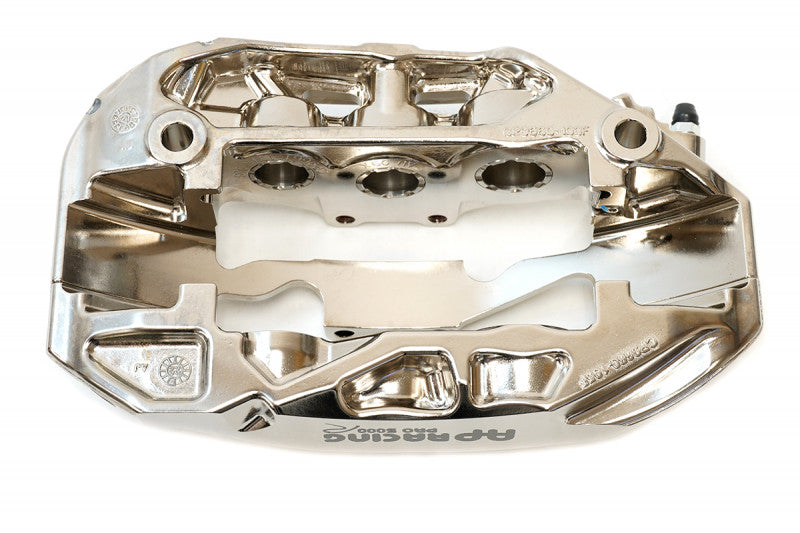

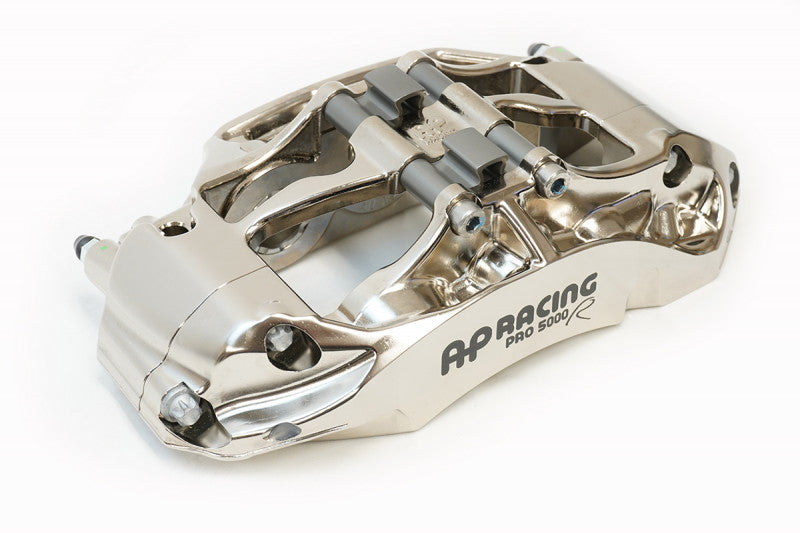

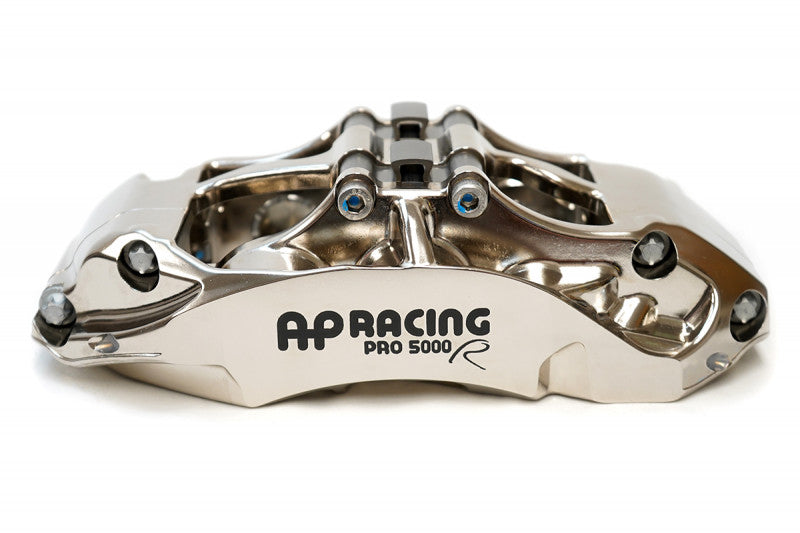

- Features AP Racing CP9661 Radi-CAL six piston calipers
- Our kit includes all the required components to retain OE parking brake functionality on Z51 cars only. If you have a base Stingray or a Z06, you will need to purchase the Z51 "Heavy Duty" parking brake calipers (GM Part # 84862010 for Driver Side and # 84862014 for Passenger Side, along with brake pad set #84935101 and QTY 2 kit #84862007).
- Jewel-like ENP caliper finish is incredibly durable and easy to clean
- Clears Z51 OEM 20" Trident rear wheels without a spacer
- Saves 12 unsprung lbs. from tail vs. OEM Z51 brakes, despite more pistons and larger discs
- 355x32mm, 72 vane AP Racing J Hook Discs
- Every component designed to resist the heat of extended track sessions

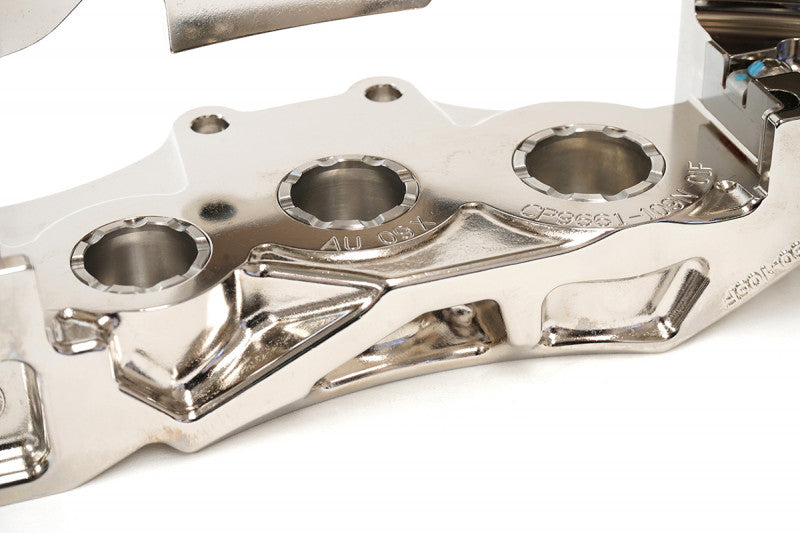

- Pistons sized properly to integrate with OEM master cylinder and ABS system
- Designed to work with OEM or AP Racing by Essex front Brake Kits

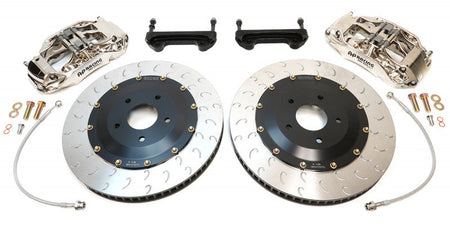

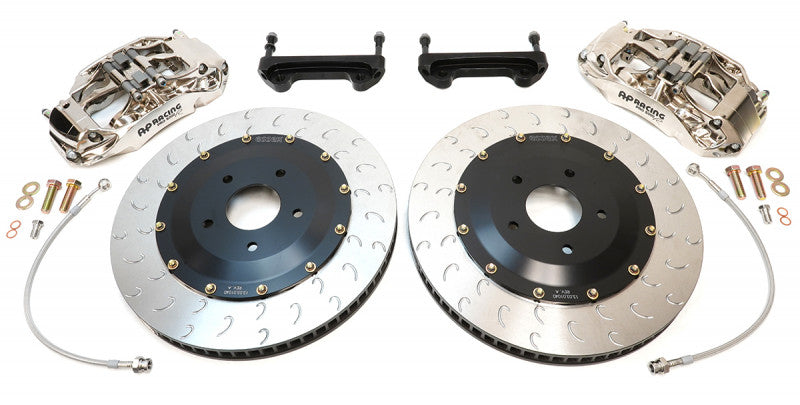

WHAT'S IN THE BOX?
- One pair AP Racing CP9661 Radi-CAL Pro5000R racing six piston calipers
- One pair 355x32mm AP Racing CP7177, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
- One pair caliper mounting brackets and hardware
- One pair Spiegler
- Stainless Steel Brake Lines with abrasion resistant coating
- Detailed installation instructions
- Brake pads are NOT included with our system. Racing brake pads are a highly personal choice. Many manufacturers include a set of inexpensive, low quality pads with their brake kits. Rather than artificially inflating the price of our system with a set of pads you probably don't want anyway, we've decided to remove the cost from our system and allow our customers to choose the pads that best suit their needs/wants.
- Pad Tension Clips (frequently referred to as anti-rattle clips) are NOT included with our Competition Kits, but we do offer them as an option if you're concerned about NVH. One of the great benefits of the AP Racing calipers in our system is that they are designed to accommodate pads from a wide range of manufacturers. Each manufacturer builds their pads with specifications that are slightly different. As such, pads from different manufacturers, or even from different batches, won't always fit in the calipers in exactly the same manner. Some pads are a snug fit, while others may rattle around and produce noise. The Essex Designed Pad Tension Kit is designed to dramatically reduce pad movement inside the caliper, along with just about all resulting noise.
Notes:
- Brake pads are NOT included with our system
- Each caliper requires one Pad Tension Kit. If you need enough tension blocks for both of your calipers, you need to order two of these kits!
- Fits 19" OEM Z51
- Kit includes components to retain OE parking brake functionality on Z51 cars only
- If you have a base Stingray, you will need to purchase the Z51 "Heavy Duty" parking brake calipers (GM Part # 84862010 for Driver Side and # 84862014 for Passenger Side)
Fitments:
| Make |
Model |
Years |
| Chevrolet |
Corvette C8 Z51 |
2020-2021 |
