Description:
AP Racing by Essex Radi-CAL Heavy-Duty Competition Brake Kit (Front CP9668/390mm D62)-Gen.6 Camaro, Cadillac ATS-V & CTS-V (V3)
Part #: 13.01.10140
Brand: Essex & AP Racing
Complete front AP Racing by Essex Radi-CAL Heavy-Duty Competition Brake Kit for the Gen.6 Camaro, Cadillac ATS-V & CTS-V (V3)
- Developed around an extra large D62 pad to provide greater heat capacity, longevity, and fade resistance, especially on heavily modified vehicles
- Shaves approximately 10 lbs. of unsprung weight from the nose vs. the OEM SS 1LE brake system, and approximately 20 lbs. vs. the ZL1 1LE brakes

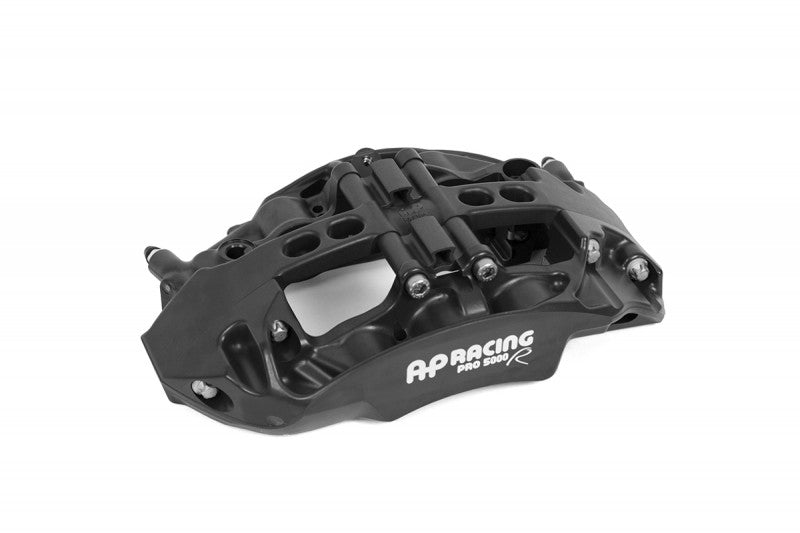

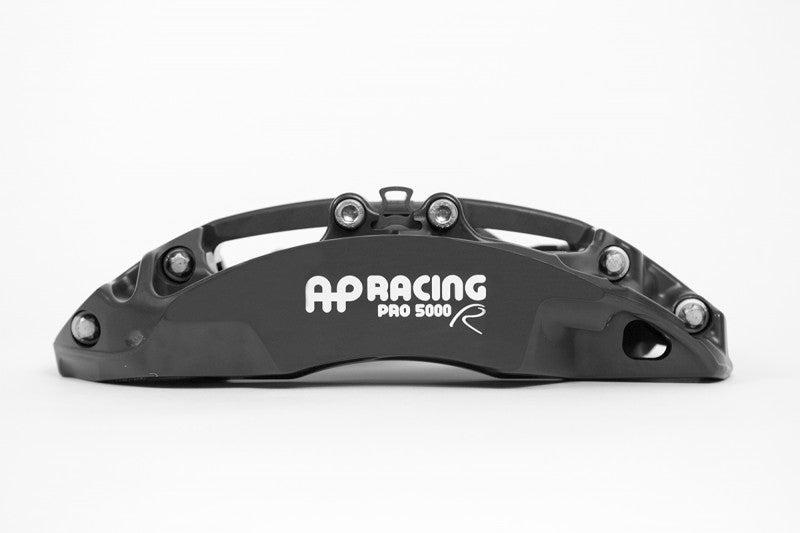

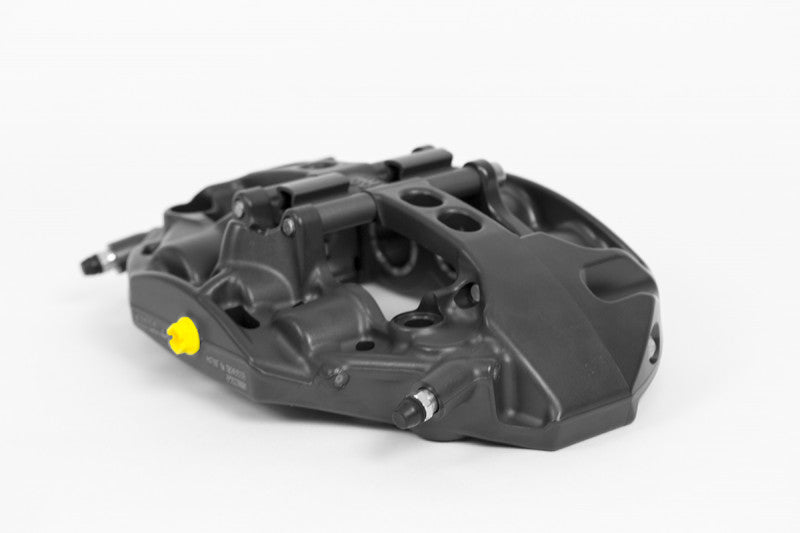

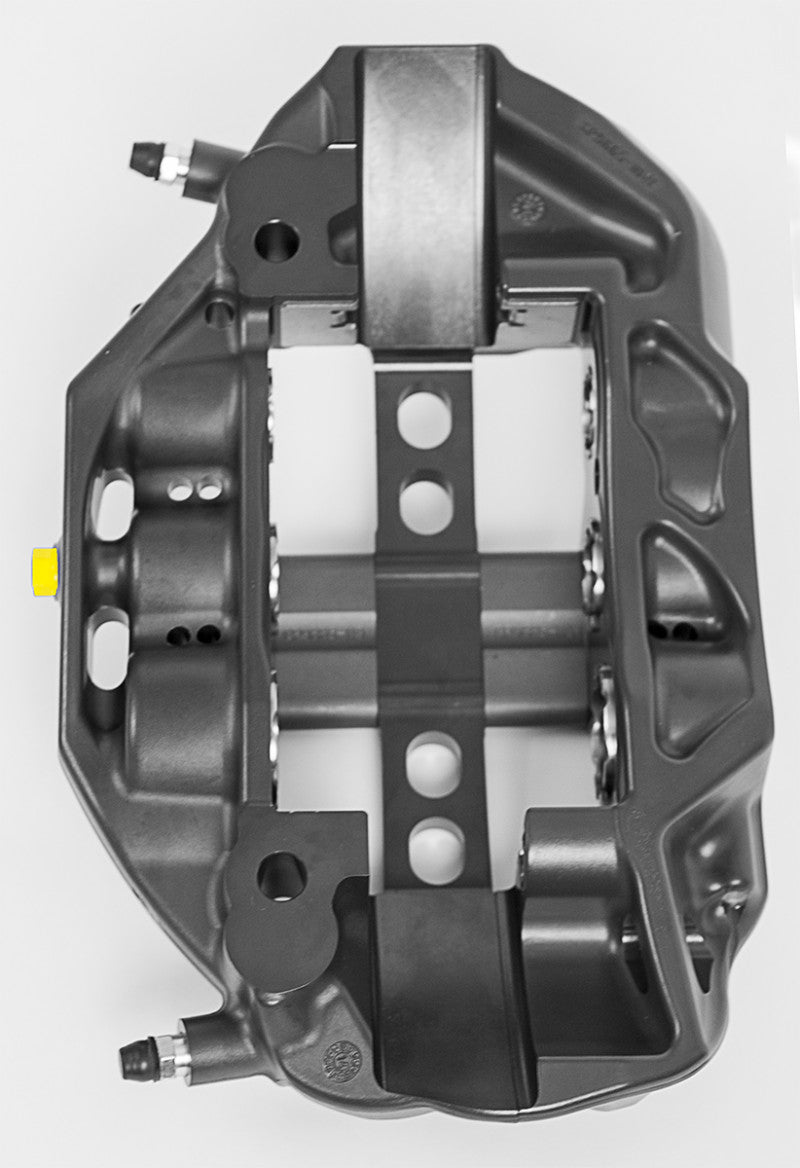

- Features AP Racing CP9668 Radi-CAL Pro5000R six piston calipers that use 25mm (1 inch) thick pads
- 390 x 36mm, 72 vane AP Racing iron discs with larger swept area to match the pad radial depth of 62mm
- Every component designed to resist the heat of extended track sessions

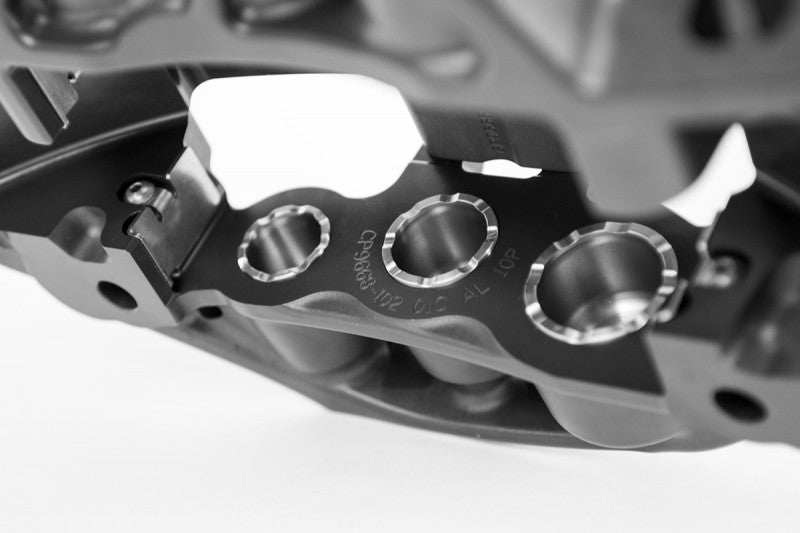

- Pistons sized properly to allow for integration with OEM master cylinder and ABS system while maintaining proper brake bias
- Designed to work with either the OEM rear brakes or our matching rear AP Racing by Essex Radi-CAL Competition Kit.
WHAT'S IN THE BOX?

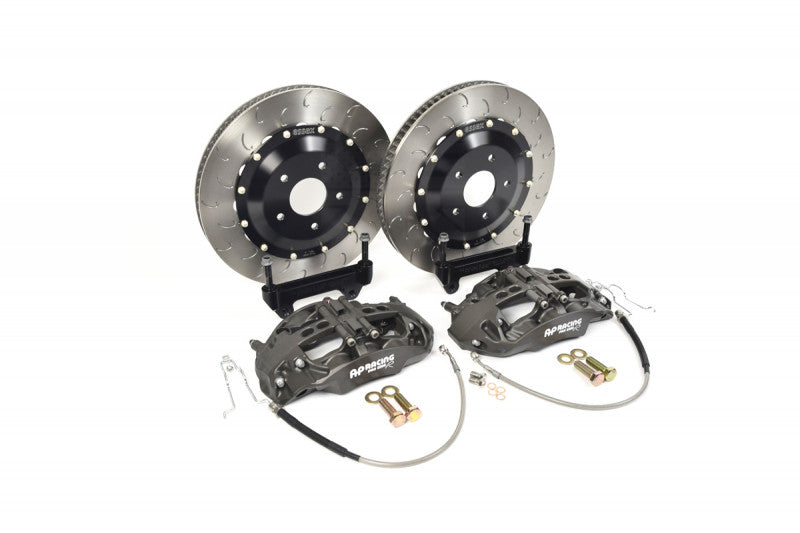

- One pair AP Racing CP9668 Radi-CAL Pro5000R six piston calipers
- One pair 390 x 36mm AP Racing CP4284 72 vane J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
- One pair caliper mounting brackets and hardware
- One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
- Detailed installation instructions
- Brake pads are a highly personal choice, and normally we don't automatically include or require them with a kit purchase. However, due to the special nature of this particular kit, the larger Ferodo D62 pad is required.

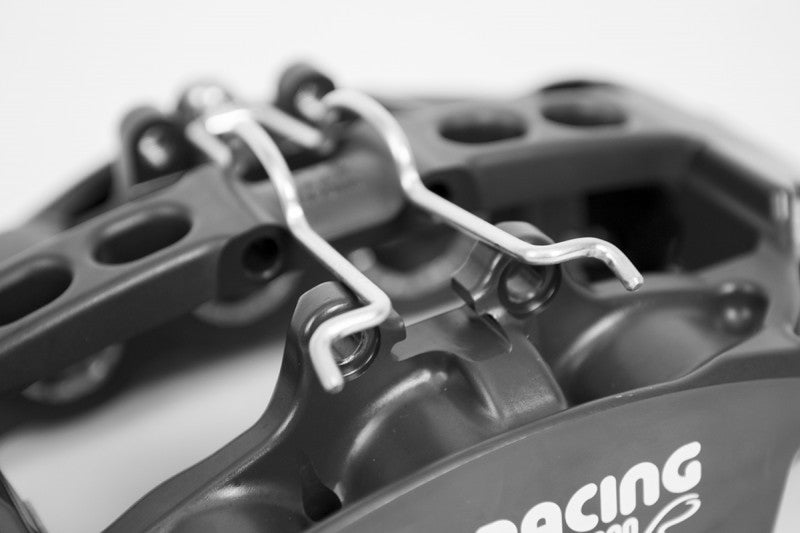

- Pad Tension Clips (frequently referred to as anti-rattle clips) are NOT included with our Competition Kits, but we do offer them as an option if you're concerned about NVH. One of the great benefits of the AP Racing calipers in our system is that they are designed to accommodate pads from a wide range of manufacturers. Each manufacturer builds their pads with specifications that are slightly different. As such, pads from different manufacturers, or even from different batches, won't always fit in the calipers in exactly the same manner. Some pads are a snug fit, while others may rattle around and produce noise. The Essex Designed Pad Tension Kit is designed to dramatically reduce pad movement inside the caliper, along with just about all resulting noise.
Notes:
- Each caliper requires one Pad Tension Kit. If you need enough tension blocks for both of your calipers, you need to order two of these kits!
- Requires Ferodo D62 pads
Fitments:
| Make |
Model |
Submodel |
Years |
| Chevrolet |
Camaro |
- |
2016-2023 |
| Cadillac |
ATS-V |
- |
2016-2019 |
| Cadillac |
CTS-V |
- |
2016-2019 |
