The SMART ADAPTER W is the radio frequency device that can transmit the vehicle data to an iOS/Android mobile device.
Data obtained from your vehicle can be displayed on your device screen by dedicated Apps.
- Depending on your device / vehicle models, there are cases that they are not adaptable to this product. Please contact us about the compatibility with your vehicle if you are not sure.
Main Features
-
By linking to the ADVANCE SYSTEM, your iOS/Android device can show you vehicle information (from sensors)Â Â
Just connecting the SMART ADAPTER W to the ADVANCE Unit, the SMART ADAPTER W can transmit information on the Unit sensors to an iOS/Android device.
By installing the dedicated App, meters or graphs can be displayed on the screen.
-
By acquiring vehicle information from the OBDII connecter, compared with the sensor connecting, it is much easier to get information at low cost.Â
It can transmit vehicle information to your iOS/Android device without the ADVANCE SYSTEM if the OBDII follows ISO-CAN specification.
How to connect
There’re three ways of connecting.
1. Connection to the ADVANCE SYSTEM(DF14501 recommended product)
Information acquired by ADVANCE Unit sensors, such as temperatures or pressures, can be transmitted to an iOS /Android device.
- If you connect the SMART ADAPTER W to the ADVANCE SYSTEM, the ADVANCE Control Unit and its sensors are necessary.
Â
2.Connection to OBDII(DF14502 recommended product)
When connecting the SMART ADAPTER W to the in-vehicle OBDII connector, ISO-CAN information, (e.g., throttle calibration), will be transmitted to an iOS/Android mobile device.
Compared with the sensor connecting like the ADVANCE SYSTEM, it is easier for you to draw out vehicle information at low cost.
- Please make sure that your vehicle is applicable before purchasing.
- The ADVANCE SYSTEM is not necessary if you use the only OBDII.
- Some display items of the OBDII connector are different from the ADVANCE SYSTEM.
- You need an OBDII wire harness when connecting the OBDII connector. If you buy the SMART ADAPTER W (DF14501) only, please purchase the OBDII wire harness.
Â
3. Connection to both the ADVANCE SYSTEM and the OBDII connector (DF14502 recommended product)
This adapter can transmit vehicle data obtained from both the ADVANCE SYSTEM and the OBDII simultaneously. It means, two data can be used in combination.(Mix mode)
- Please make sure that your vehicle is applicable before purchasing.
- You need an OBDII wire harness when connecting the OBDII connector. If you buy the SMART ADAPTER W (DF14501) only, please purchase the OBDII wire harness.
Â
Apps
Please run the dedicated Apps for iOS/ Android to display vehicle information.
You can customize display items and gauge’s colors.

Â
Specification
| Power Supply Voltage |
DC10V_16V(For 12V vehicle) |
| Current Consumption |
1. Connection to ADVANCE SYSTEM
Maximum value in case 7 gauges are connected
+B line 2A(IGN ON), 5mA(IGN OFF)
ILM line 800mA
2. Connection to OBDII
Maximum Current Consumption(SMART ADAPTER W)0.3A
|
| Part names & Dimensions |
|
Â
Components
| Part name |
QTY |
[DF14501]
SMART ADAPTER W |

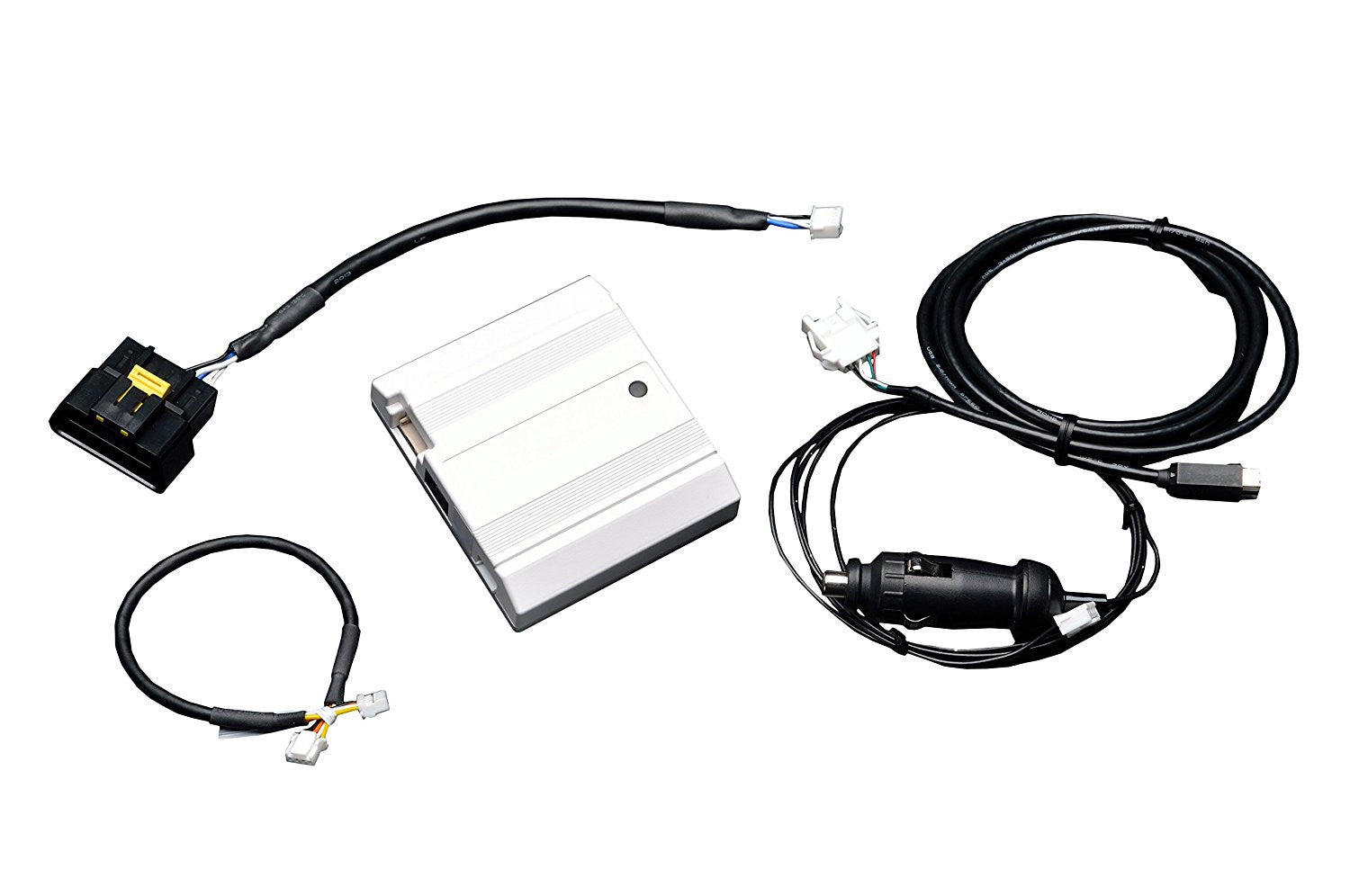

[DF14502]
SMART ADAPTER W
OBD SET |
| SMART ADAPTER W |
1pc |
_ |
_ |
| Double sided tape |
1pc |
_ |
_ |
| Meter wire harness 25cm |
1pc |
_ |
_ |
| Speed & Tachometer Signal Wire harness 2m |
1pc |
_ |
× |
OBDII wire harness 20cm
(SMART ADAPTER W only) |
1pc |
× |
_ |
Adapter wire harness 80cm
(SMART ADAPTER W only) |
1pc |
× |
_ |
| Cigar plug wire harness 1.5m |
1pc |
× |
_ |
| Tie wrap |
3pc |
× |
_ |
Â
