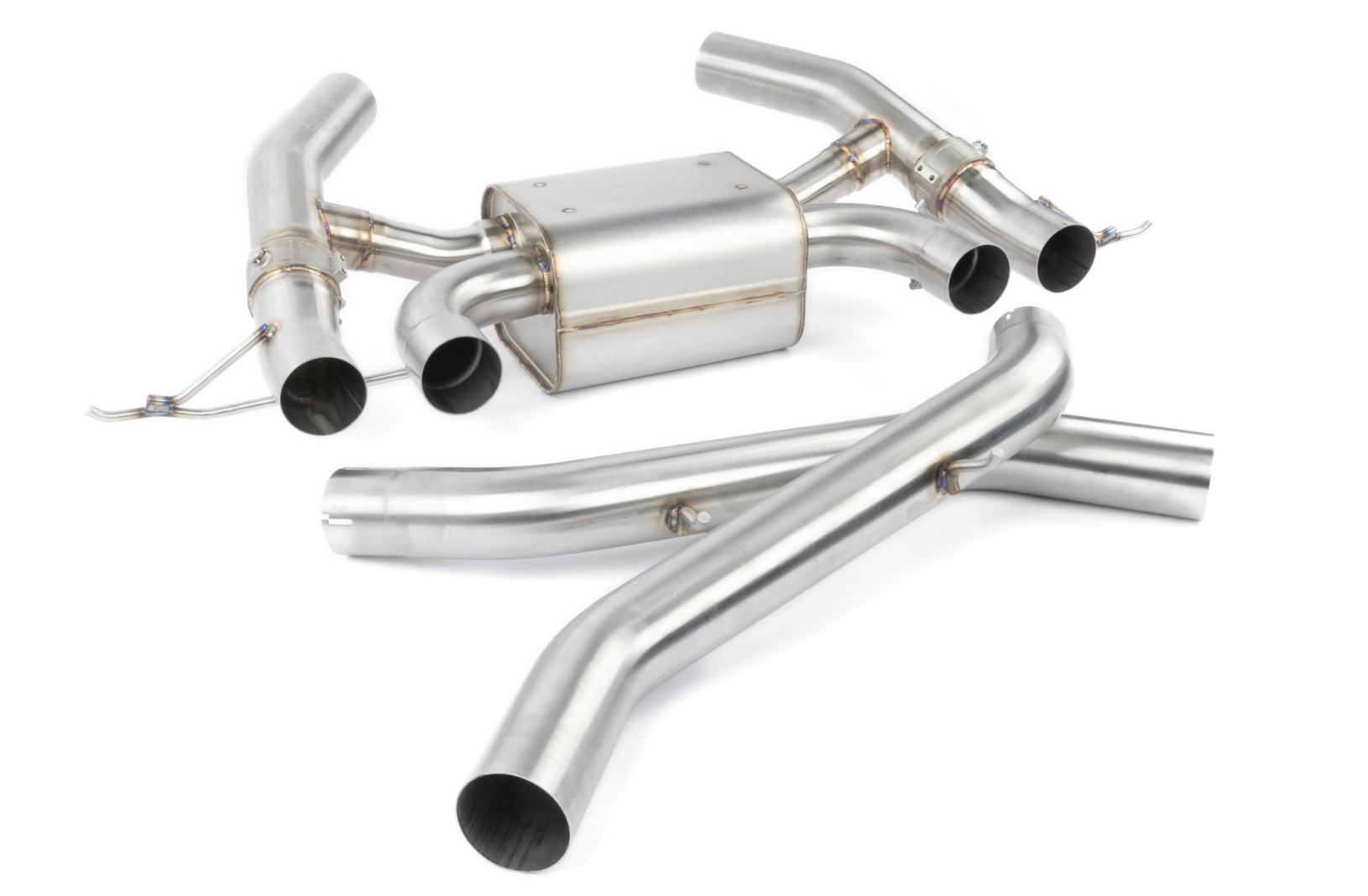

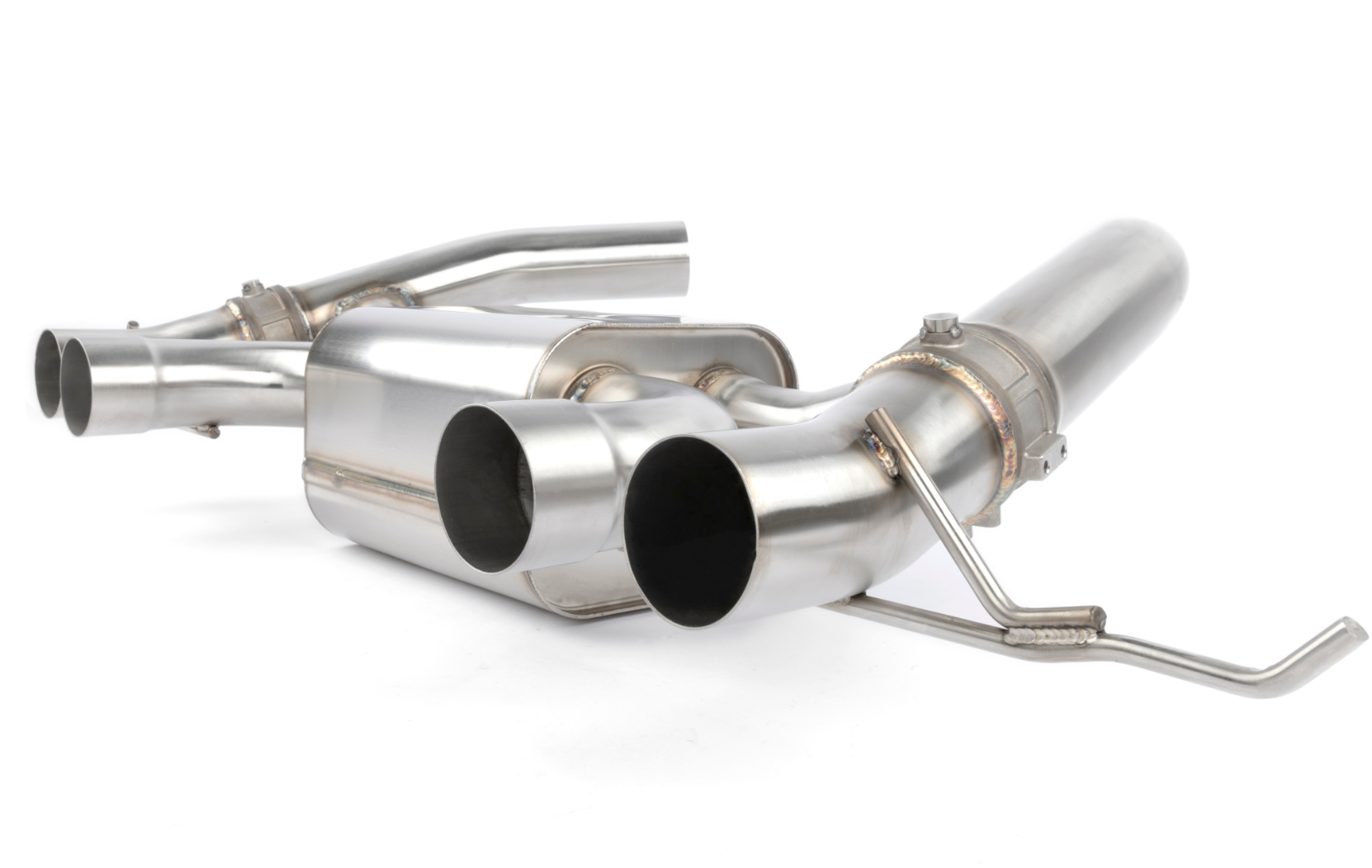

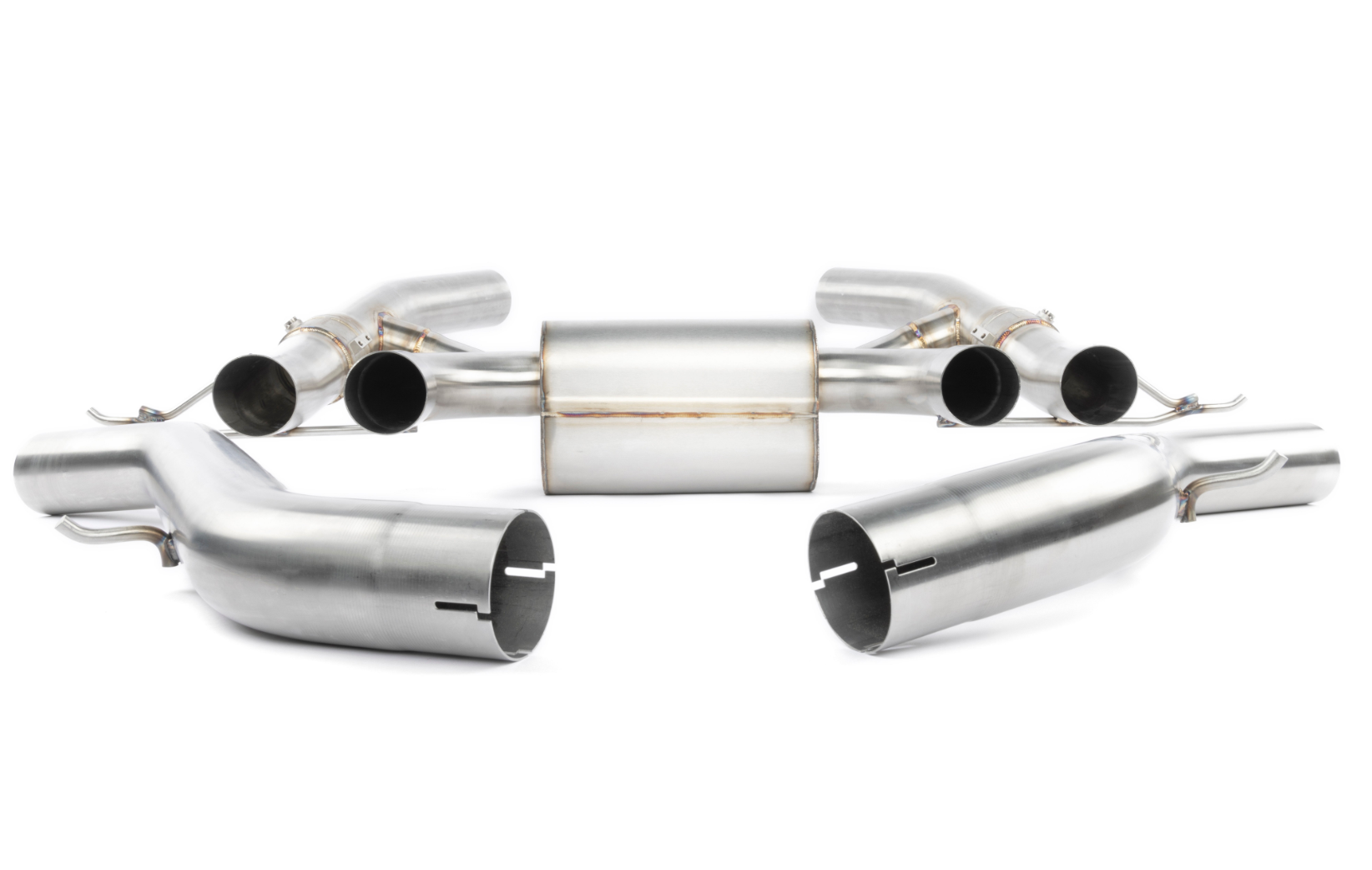

Dinan Valved Axle-Back Exhaust System with Black Tips for BMW M2 (G87) 2023-2025
The G87 M2 represents a significant leap forward from its predecessor, leveraging the same engineering prowess as its larger siblings, the G8X M3 and M4, while delivering a unique package for enthusiasts. While the M2 shares many components with these models, its exhaust system requires a more tailored approach due to differences in inlet pipe bends. Despite these slight variations, Dinan has applied the extensive drone abatement technologies developed for the M3 and M4 to the G87 M2, resulting in a sophisticated valved axle-back exhaust system that enhances both sound quality and performance.
Dinan’s M2 system employs 76mm tubing (up from the stock 70mm) to reduce backpressure and promote freer exhaust flow, delivering an audibly deeper and more pronounced note. The system retains the factory exhaust valves, allowing for dual modes: with valves closed, gases are directed through the Dinan muffler, using absorption and reactive technologies to deliver a quieter, refined sound for low-speed driving. When the valves open under high-load conditions, gases bypass the muffler for a straight-pipe-like experience, producing a more aggressive and exhilarating exhaust note. This versatility ensures a balance between civility and aggression, catering to various driving scenarios.
Crafted entirely from T304 stainless steel and meticulously TIG-welded, the Dinan exhaust not only performs exceptionally but also looks stunning, with a brush finish that guarantees a clean and durable appearance. The standout feature is the quad 4.5-inch (114mm) double-walled polished stainless steel tips, which are laser-engraved with the Dinan logo. These oversized tips fill the factory valance perfectly, creating an OEM+ aesthetic while exuding an aggressive visual presence.
Features:
-
Power gains: +6 HP and +5 lb-ft of torque
-
Enhanced sound: Louder, sportier exhaust tone with drone reduction technology
-

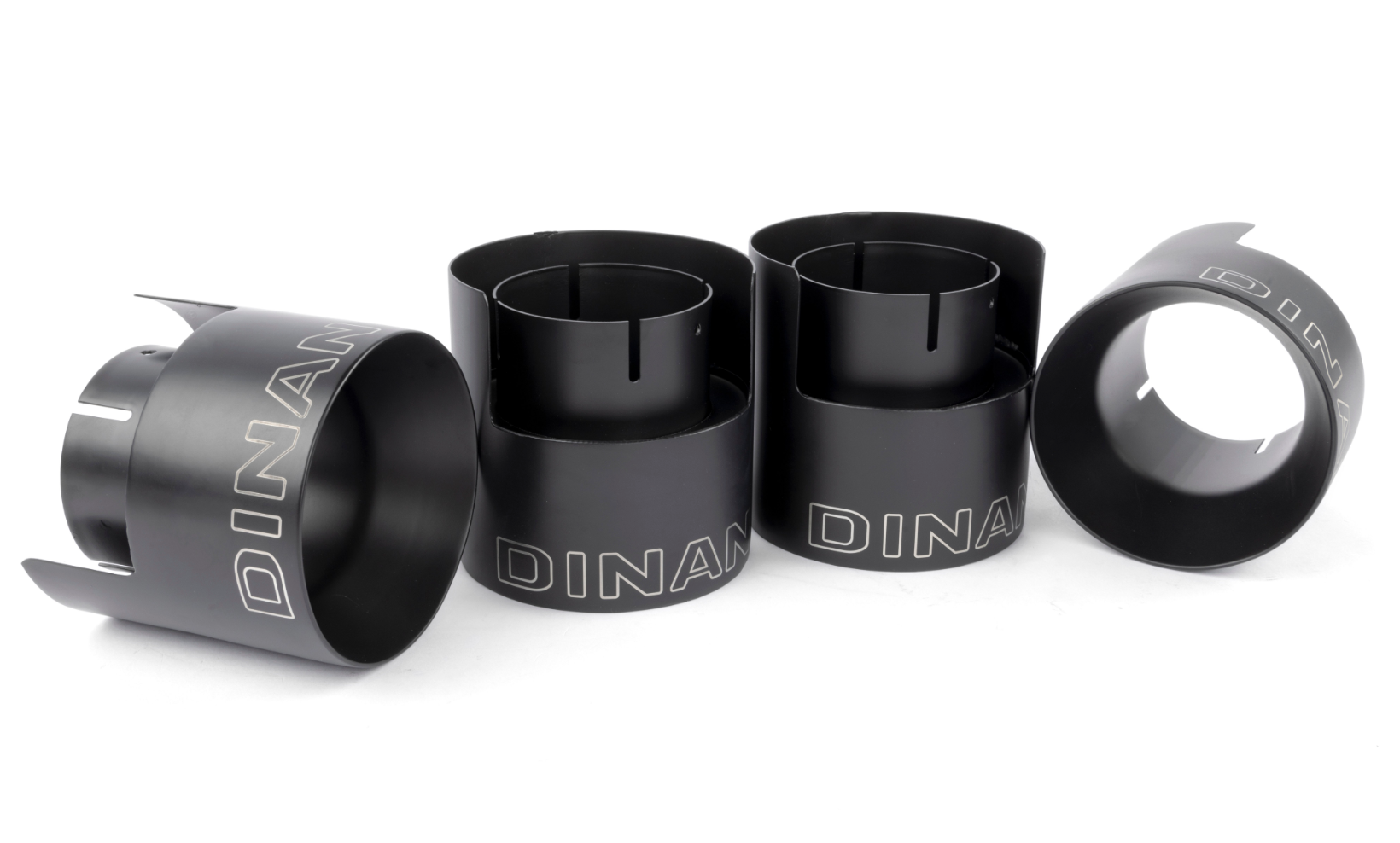

Exhaust tips: Quad 4.5" (114mm) diameter double-walled polished stainless steel tips with laser-engraved Dinan logos
-
Larger diameter piping: 76mm tubing for increased flow (vs. 70mm stock)
-
Weight savings: 6 pounds lighter than the stock axle-back system (Dinan: 38 lbs vs. stock: 44 lbs)
-
Valve control: Stock exhaust valve actuators are reused, maintaining factory control of exhaust tone through M-drive settings
-
Stainless steel construction: 100% T304 stainless steel, offering durability and corrosion resistance
-

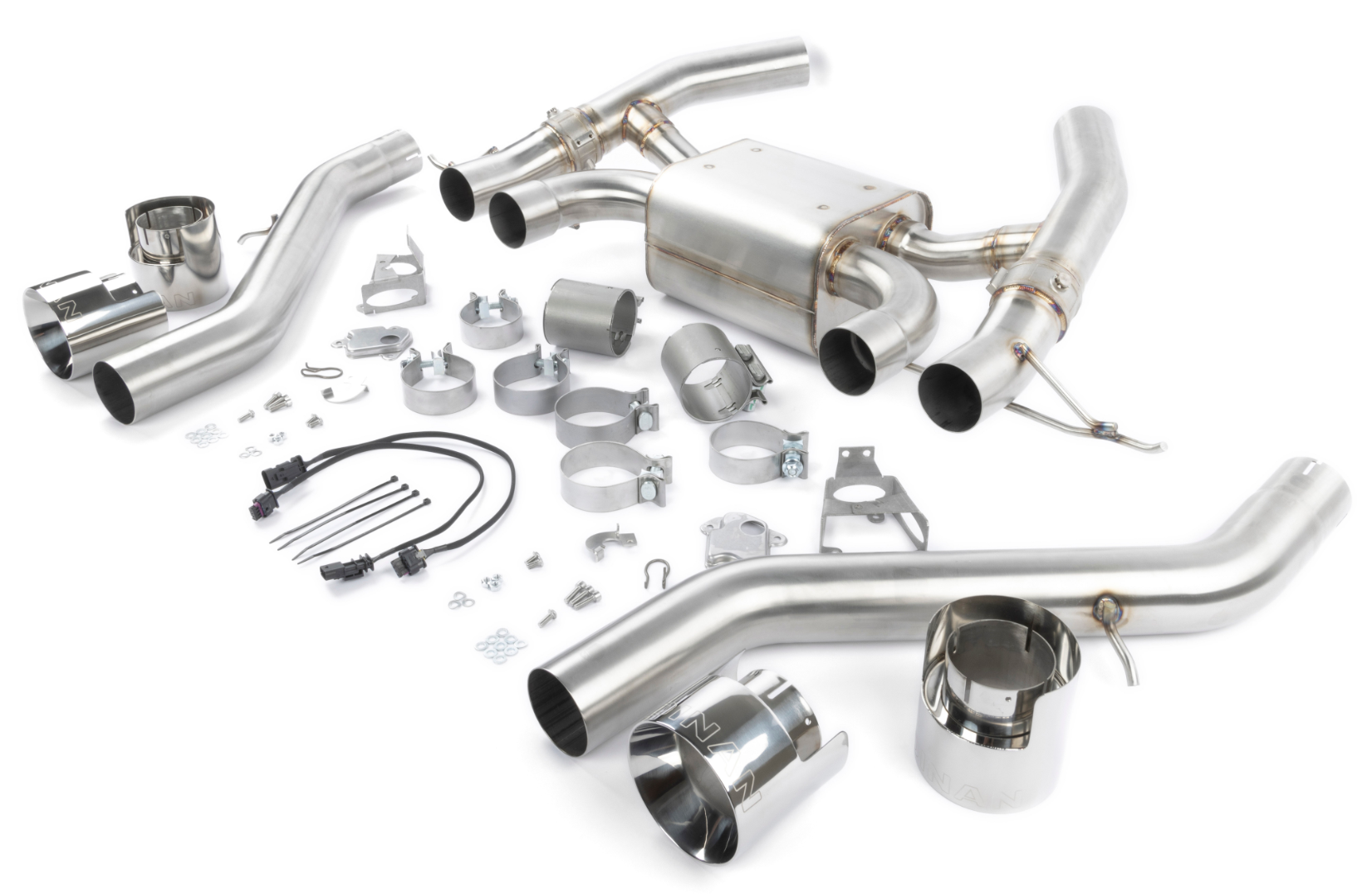

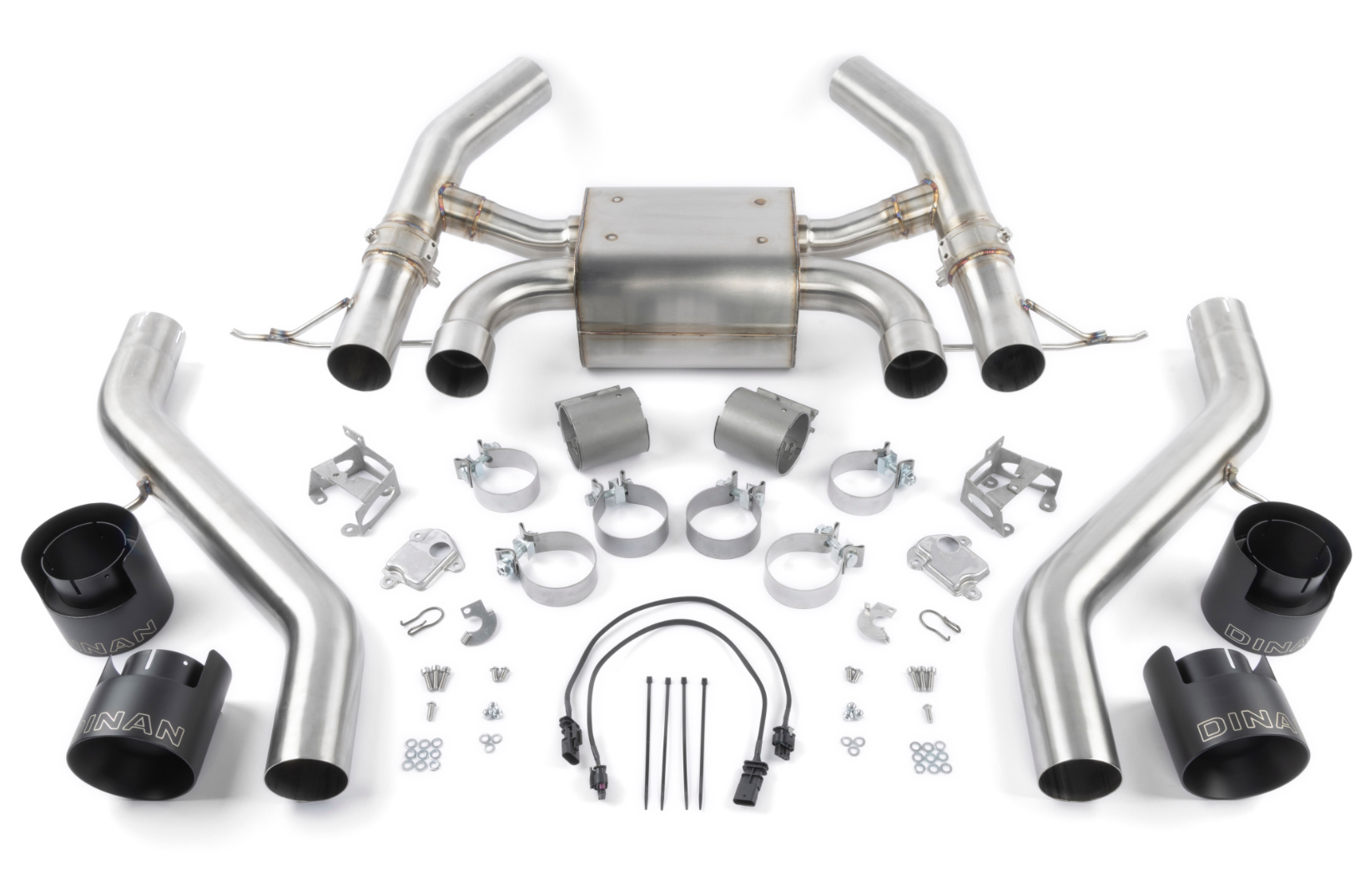

Factory-like fitment: Comes with all necessary mounting hardware for seamless installation
| Brand |
Dinan |
| Dinan Point Value |
3 |
| Emission Code |
5 |
| Labor Time (Hours) |
2.7 |
| Max HP Gain |
6 @ 6600 RPM |
| Max Torque (lb-ft) Gain |
5 @ 6600 RPM |
| Product Type |
Axle-Back Exhaust |
| Sale Category |
Exhaust |
| Tip Finish |
Black Ceramic Coated |
| UPC |
090127819814 |
| Part Number |
D660-0100-BLK |
Fitment Chart:
| Make |
Model |
Year |
BMW
|
M2
|
2023-2025
|
