Hybrid Racing Z3 K Series Swap Bolt-in Short Shifter Assembly | Honda K20Z3 Transmission (HYB-SAS-01-11)

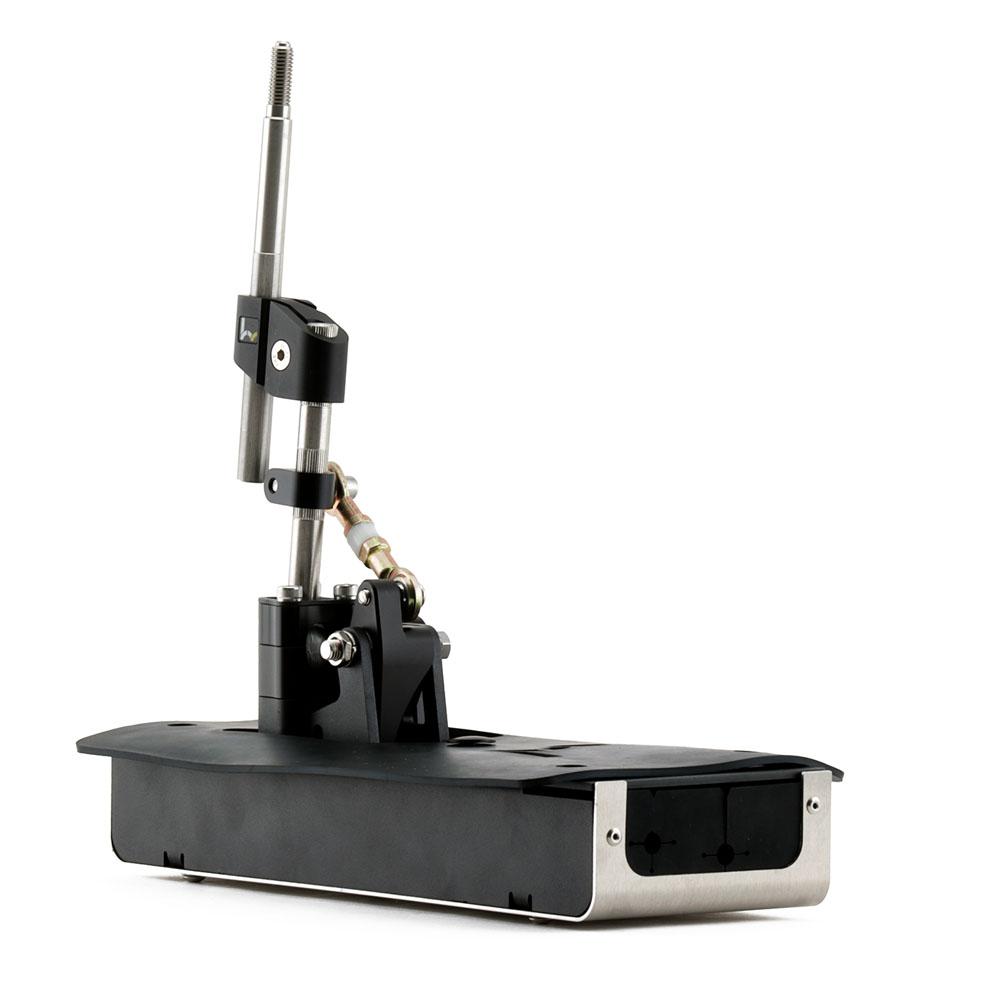

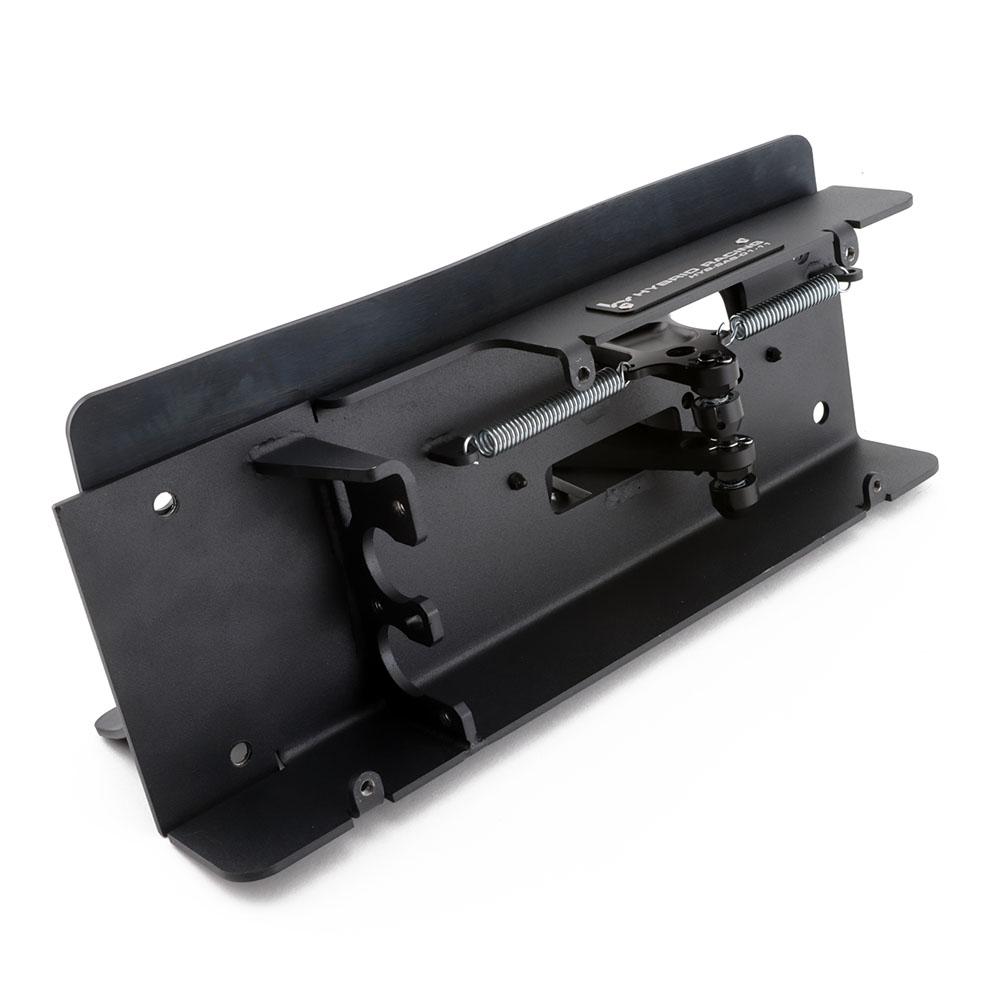

Z3 K Series Swap Bolt-in Short Shifter Assembly by Hybrid Racing

For years, installing a shifter into a K-swapped vehicle meant cutting a large section out of the chassis’ center tunnel to mount an OEM RSX shifter to a metal plate. This meant that the engine swap was more or less irreversible. That’s why Hybrid Racing developed a bolt-in shifter specifically meant for K-swapped Honda and Acura chassis.After nearly a year of design refinements and testing, we are proud to present our new Z3 transmission compatible k-swap shifter. This is the ONLY bolt-in solution for k-swaps using the Z3 transmission from the 8th generation Civic Si’s. Previously, the only way to have a bolt-in solution was to swap out the z3 transmission’s shift mechanism with an RSX unit, then use RSX cables and our original K-swap shifter.

After nearly a year of design refinements and testing, we are proud to present our Z3 transmission compatible k-swap shifter. This is the ONLY bolt-in solution for k-swaps using the Z3 transmission from the 8th generation Civic Si’s. Previously, the only way to have a bolt-in solution was to swap out the z3 transmission’s shift mechanism with an RSX unit, then use RSX cables and our original K-swap shifter. Well, those days are long gone! Now, you can use an unmodified Z3 transmission and OEM Z3 shifter cables (or our 8th Gen Civic Performance Shifter Cables) in your swap by just bolting in this shifter.This design features an array of improvements over our original K-swap shifters.

This design features an array of improvements over our original K-swap shifters. Among these improvements is a main pivot point that’s designed to dramatically reduce friction and to automatically compensate for wear as the shifter ages. In addition, every pivot point is isolated using Delrin or Teflon to ensure consistently smooth and quiet operation. A new design philosophy was incorporated into many of the joints to simplify the design while reducing unwanted play between parts. And as always, we have designed this shifter with independently adjustable front/back and left/right throw which can be set between 85% and 45% of the OEM 8th Gen Civic shifter.

Features

• Utilize stock K20Z3 transmission and stock shifter cables.
• NO CUTTING or random parts to buy.
• Hundreds of adjustable positions.
• Stainless steel & aluminum construction.

Please Note:

• If your car was equipped with an automatic shifter you will need to cut off the factory auto shifter cable bracket that is welded inside of the shift tunnel. Once you do that the installation is the same as a manual trans chassis.
• No drilling is required if you are replacing a Karcepts shifter adapter plate

Applications

• K-Swaps using the K20Z3 Transmission


What's In The Box?

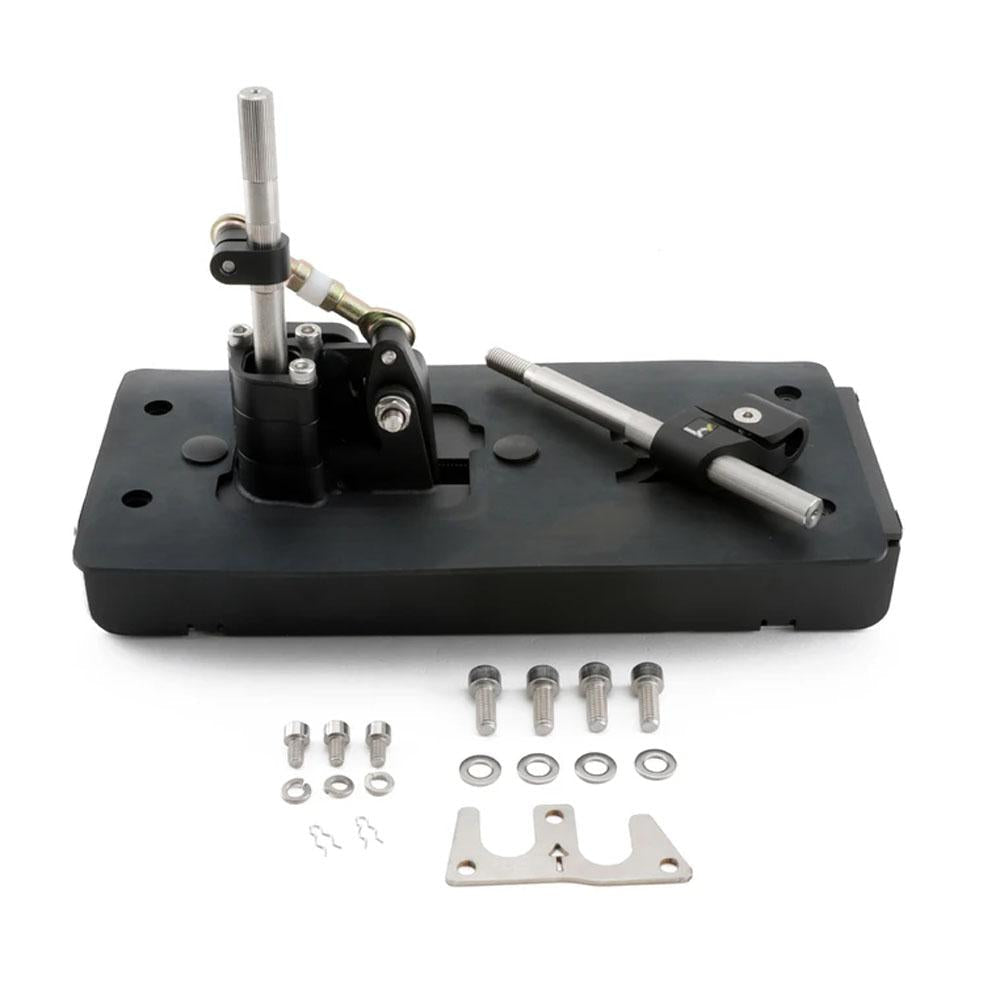

• 1 - Bolt-In Short Shifter Assembly
• All Necessary Mounting Hardware

References

• Installation Instructions

Warranty

• Manufacturer Standard Warranty
