Integrated Engineering Audi 3.0T B8 B8.5 C7 C7.5 Supercharger Pulley Upgrade 4-Bolt Style (S4, S5, A6 & A7)

Name: Integrated Engineering Audi 3.0T B8 B8.5 C7 C7.5 Supercharger Pulley Upgrade 4-Bolt Style (S4, S5, A6 & A7)
Brand: Integrated Engineering
SKU: IEBAVJ5
Price: 216.99 USD
Availability: InStock

Usually ships within 24 hours

$216.99

Product details

Vendor Integrated Engineering
SKU IEBAVJ5

Do you have questions about this product?

Ask an expert!

Description

The IE supercharger pulley for late 4 bolt style 3.0T V6 Audi engines extracts more power from yourÂ supercharger by spinning the unit 7% faster than stock, resulting in higher boost levels.Â Paired with a Stage 2 Tune, you can expect gains over 25 horsepower on pump fuel.

Features

Increases supercharger RPM by 7%
Increases supercharger boost levelsÂ Â
CNC machined from billet steel
Inside bore precision honed at IEÂ Â
Zinc plated to ensure no rust
Replaces stock pulley on 4 bolt Eaton TVS 1320 Superchargers
Engineered in-house using CAD modeling and FEA analysis

Â Â

Small Pulley, More Boost!

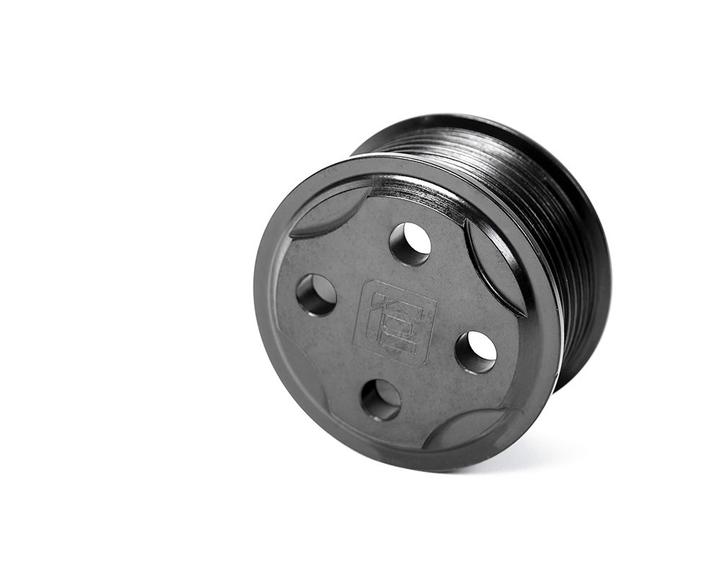

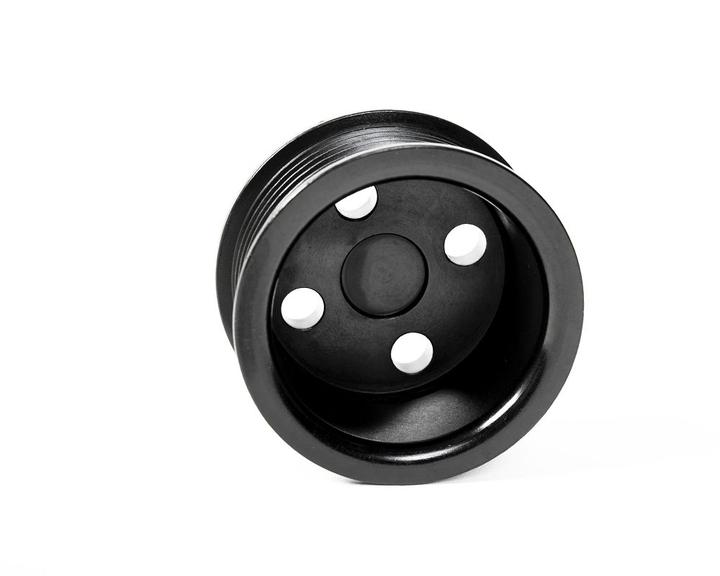

The IE 4 Bolt Style Supercharger Pulley is designed for many late-model Audi 3.0T Supercharged engines that use the non-press-fit updated bolt-on style of supercharger pulley found on many 2016+Â B8/B8.5 S4, S5, Q5, SQ5, C7/C7.5 A6, A7, and Q7 models. The pulley functions by increasing the supercharger RPM throughout the full powerband. The IE pulley is 58.8mm in diameter, making it one of most aggressive and powerful on the market. Â

Pulley Specifications

PULLEY TYPE	SUPERCHARGER PULLEY DIAMETERÂ Â Â	CRANK PULLEY DIAMETERÂ Â Â	SUPERCHARGER RATIOÂ Â Â
Stock 4 Bolt Pulley	62.9	162.25	2.5794
IE Stage 2 4 Bolt Pulley	58.8	162.25	2.7593
IE Dual Pulleys (SC & crank pulleys)Â Â Â	58.8	188	3.1972

What's Included

Included

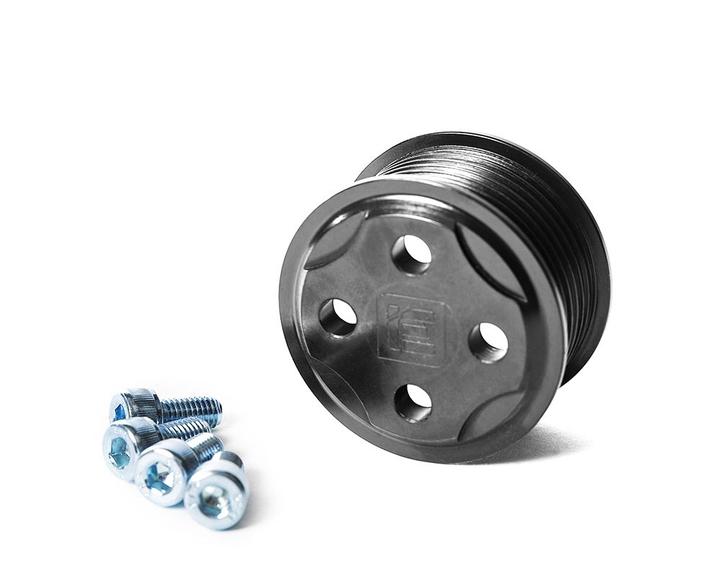

1X IE Overdrive Supercharger Pulley
4X Allen head pulley bolts

Not Included but Required

IE Stage 2 Tune

Recommended

Integrated Engineering Audi 3.0T B8 B8.5 Intake (S4 & S5)
Heat Exchanger Upgrade

Compatibility

Audi B8/B8.5 S4 S5 Q5 SQ5 2016+
Audi C7/C7.5 A6 A7 Q7 2016+

Does not fit early press-fit style S4, S5, A6 Q5/SQ5, and Q7. These engines are easily identified because the supercharger pulley has no bolts to attach it to the supercharger. For the press fit style models, please look at theÂ Integrated Engineering Audi 3.0T B8 B8.5 C7 C7.5 Supercharger Pulley Upgrade Press-Fit Style (S4, S5, A6 & A7).

Installation

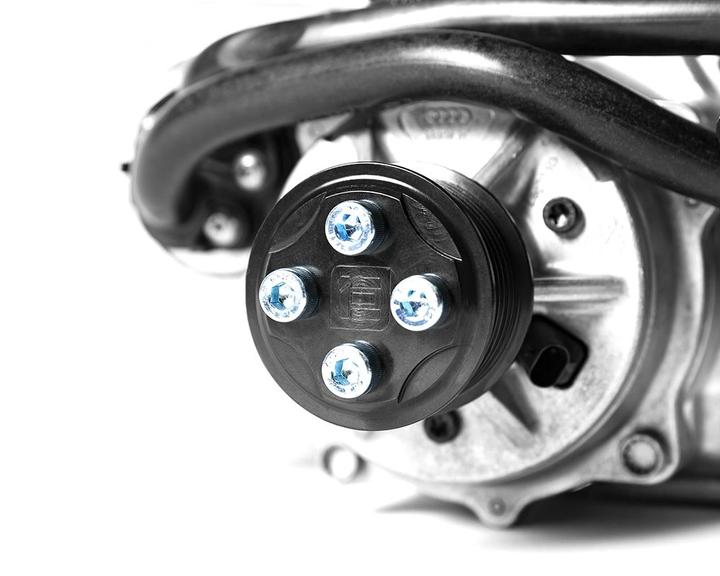

Installing the 4 bolt styleÂ supercharger pulley is rather easy for the casual enthusiast and only requires basic tools and can be completed in a matter ofÂ hours in most cases.

Integrated Engineering Audi 3.0T B8 B8.5 C7 C7.5 Supercharger Pulley Upgrade 4-Bolt Style (S4, S5, A6 & A7) ML Performance US

PartÂ Number

IEBAVJ5

More Information

Manufactured by

Integrated Engineering (IE)
