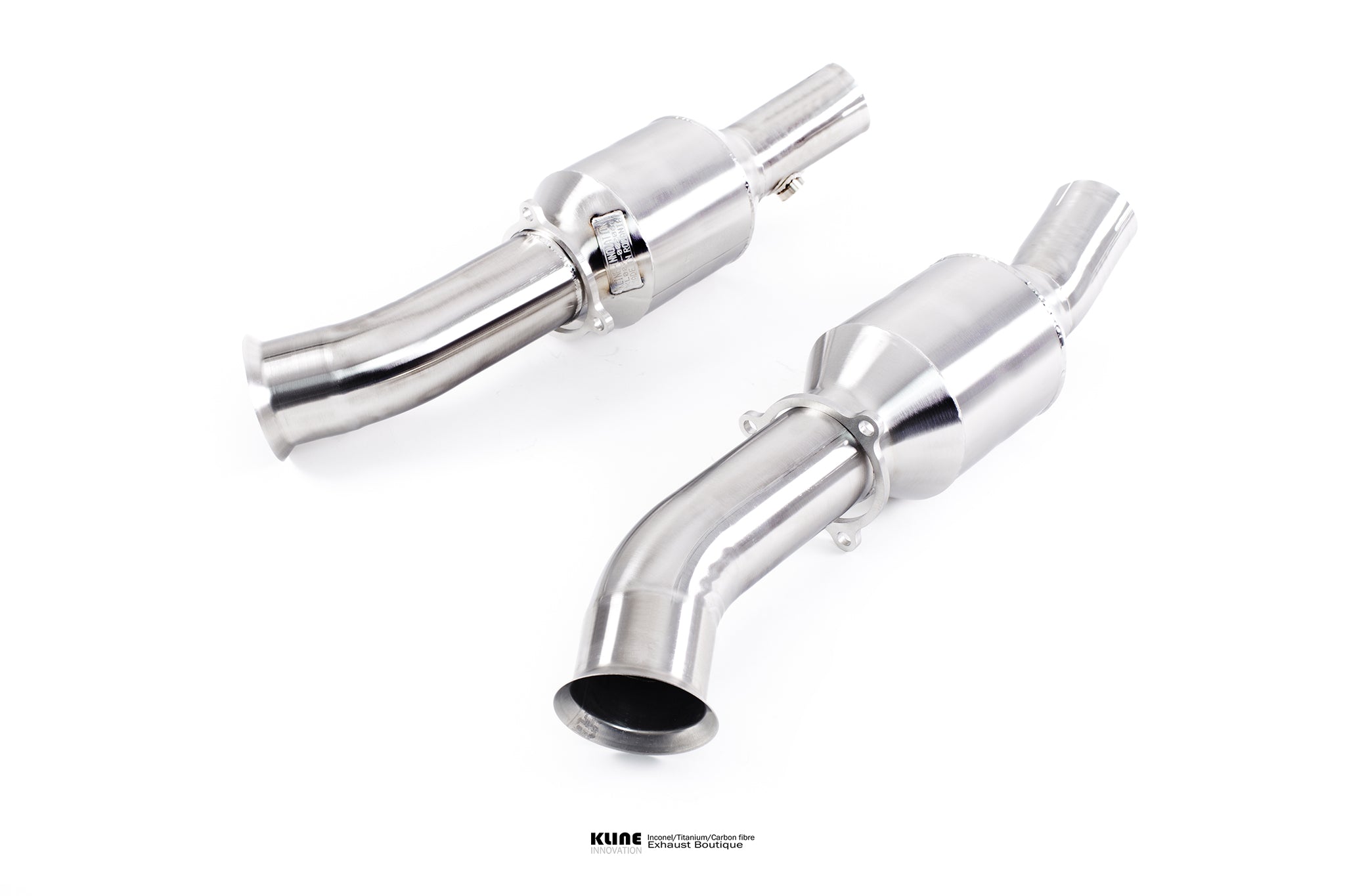

Kline Innovation 100 Cell Cat Pipe Set For Ferrari 430 Scuderia

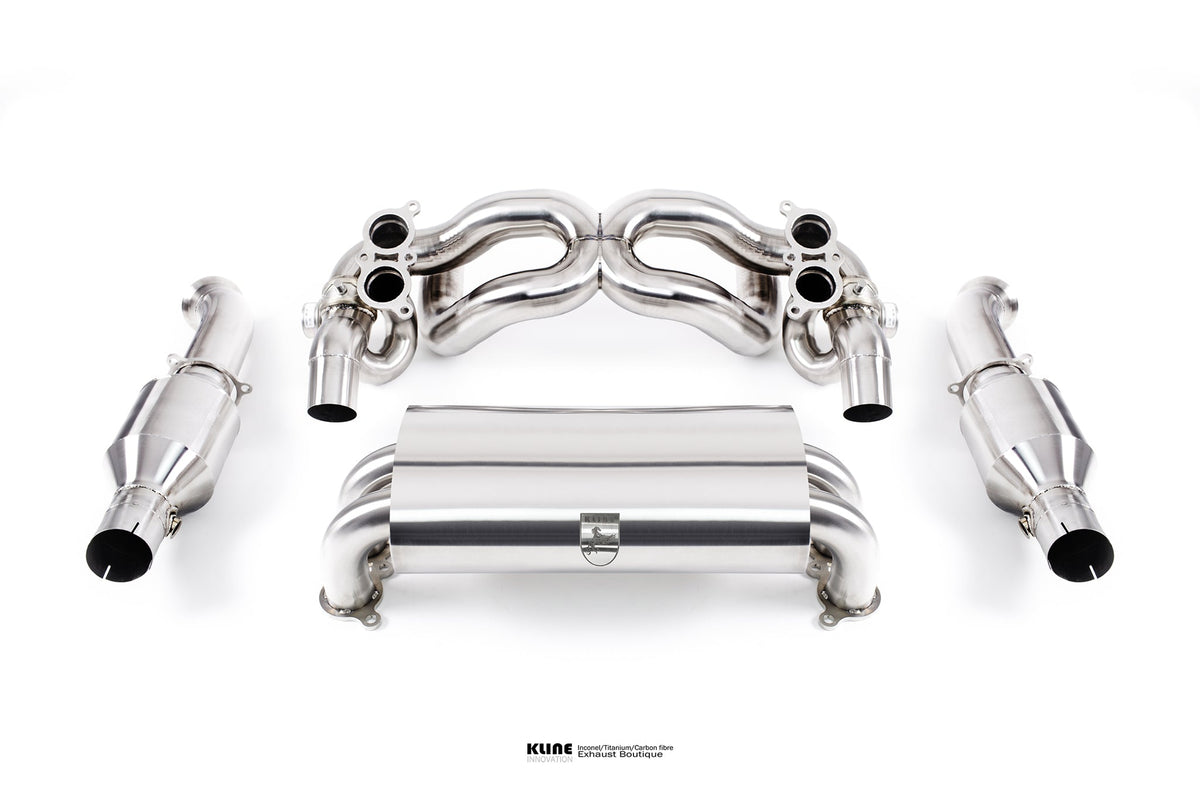

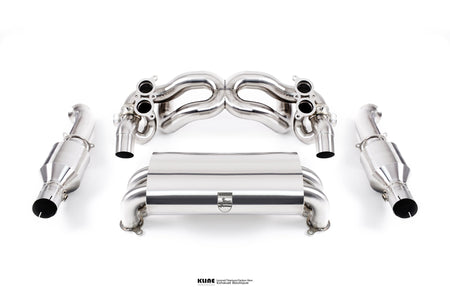

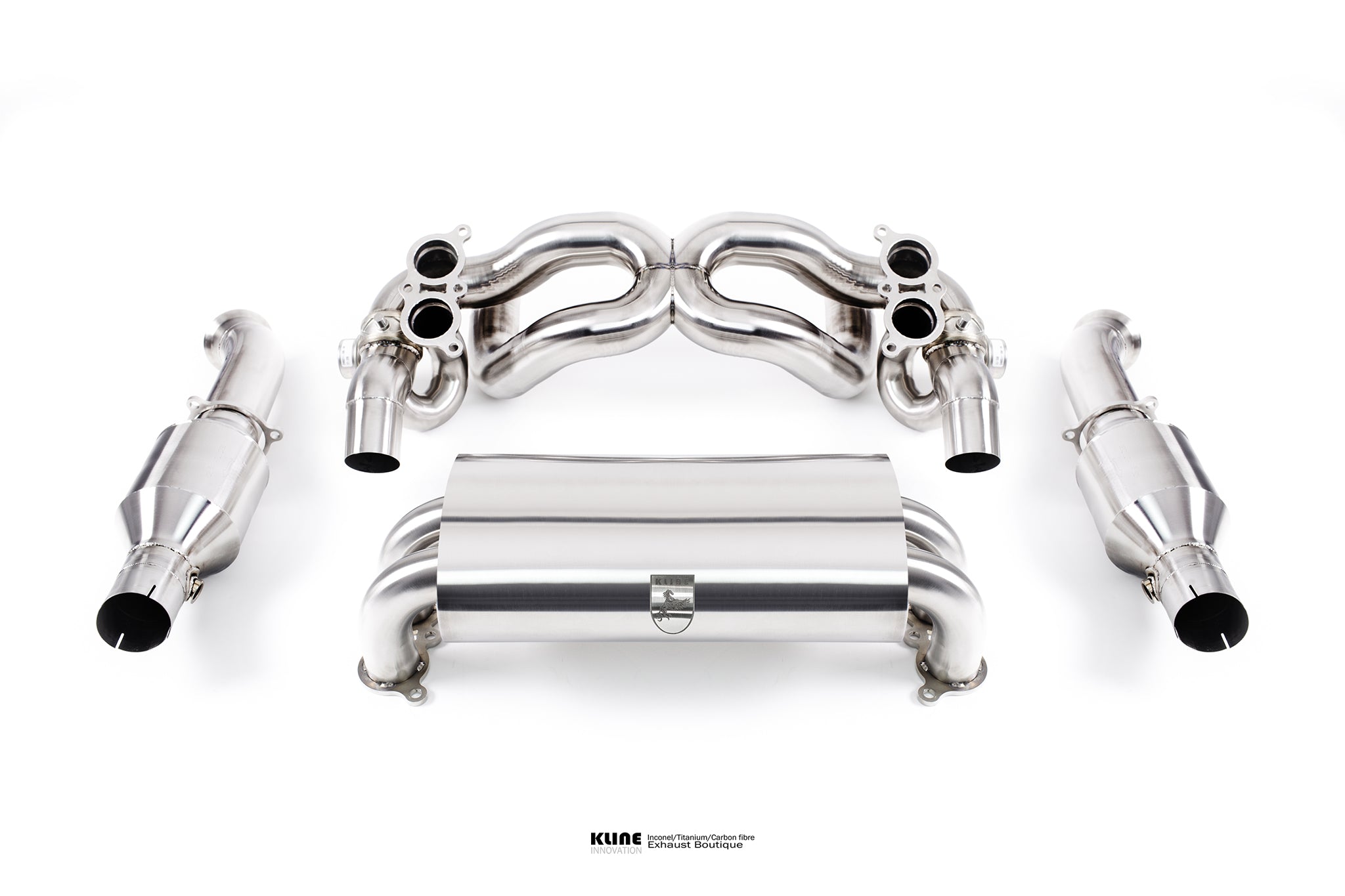

Here at Kline, we felt that the Factory exhaust for the 430 scuderia did not reflect the true beauty of this stunning supercar, or reach the full sonic potential of the 4.3 liter V8

Starting at the drawing board, the first aspect to be upgraded, replacing the stock catalysts for high performance 100cpsi race catalysts, thus reducing the gas drag coefficient, and improving scavenge, and ultimately torque response and peak power figures.Replacing the heavy, cumbersome factory silencer, for our harmonically tuned silencer, we were able to enrich both bass and treble frequencies, as well as significantly reducing weight. The final, and perhaps one of the most important design features, unique to Kline. Our trademark tight radius laminar flow x pipe. The resulting sound is unbelievably smooth under light driving conditions, and a howling raucous high pitched incendiary vocal when you need it.

Under low revs (valve closure) the gases are allowed to pass through a chamber, and an acoustic ceramic filled silencer, with the cross sections tuned toward reaching optimum gas velocity for achieving maximum torque. under hard load and high revs, the valves open for optimum power.

Completing the look with the Kline Inconel 16M style tips

The valves are actuated by the cars OEM vacuum system, and can be controlled by the new Kline INCONEL BUTTON wireless kit READ MORE>>

Specifications:



Manifold:

Primaries 45mm, 63.5mm secondaries, with formula one grade true merge collectors.



Cross Section:

Catalyst/De-cat section tubing, dual 63.5mm OD, chosen for a balance of torque and peak power. catalysts, available in 100cpsi 124mm billet, HJS race catalysts, or de-cat variation for more aggressive sound, and ultimate performance.

Silencer section tubing, dual 63.5mm on valve open, single 50mm on valve close.

63.5mm 1D CLR laminar flow x pipe.

Coming soon, manifolds. primaries 45mm, 63.5mm post collector, with formula one grade true merge collectors. Primary lengths yet to be released.



Materials:

Available in full Inconel 625 (formula one grade) material. Weight valvetronic silencer section 6kg. De-cat pipes 1.2kg each, catalyst pipes 2.2kg each.

tips inconel, weight - nothing!

Also available in 304 stainless. Weight valvetronic silencer section 13kg. De-cat pipes 3.0kg, catalyst pipes, 4.5 kg.

Manifolds will shortly be available exclusively in inconel 625. ultra light weight, and the best listed performance figures to be announced



Catalyst:

100 cell HJS cats are used as standard.

Decat pipes are also available for optimum performance, and a more aggressive sound



Features:

• Kline Innovation 100 Cell Cat Pipe Set for Ferrari 430 Scuderia: Enhance performance with improved exhaust flow
• Increased horsepower and torque for exhilarating driving dynamics
• High-quality construction ensures durability and reliability
• Direct bolt-on installation for seamless upgrade
• 100-cell catalytic converters for reduced emissions while maintaining sporty sound
• Engineered for track and street use, balancing performance and compliance
• Corrosion-resistant stainless steel construction for long-lasting appearance
• Proven performance gains through rigorous dyno testing
• Compatible with factory or aftermarket exhaust systems for versatility
• Elevate your driving experience with this high-performance cat pipe set.
