KSport Airtech Deluxe Air Suspension | 2014-2018 Infiniti Q50 RWD (CIN290-ADX)

14-18 Infiniti Q50 RWD Airtech Deluxe Air Suspension by KSport

The Airtech Deluxe Infiniti Q50 Air Suspension system builds upon our Airtech Basic kit with upgrades to performance and comfort. The system comes standard with everything from our Basic Kit including 4 high quality air struts, a Viair 444c compressor which can be raised from the lowest setting to max height in as little as 4* seconds, a 200 psi dual needle gauge and a 5-gallon black steel air tank.

In addition, the Airtech Deluxe system also features two electronic switches (front/rear and up/down) for more precise control over manual paddle valves, a hand-held wireless remote control allowing you to operate the kit from outside the vehicle, and a stylish and easy to install control box to house all electronics.

The Ksport Airtech Deluxe Infiniti Q50 Model Air Suspension System is designed for easy bolt on-installation with no modifications to OEM shock absorbers or OEM top mounts required, making it the perfect choice for those who want a complete bare bones direct bolt in air suspension system. All Hoses, wiring, and installation manuals are included with the Airtech Deluxe Air Suspension.

Features

• 5 Gallon Air Tank with Carpeted Mounting Board: Black Steel 5-gallon air tank is included with the Airtech Deluxe and Airtech Basic Air Suspension kits.
• Electronic Switches & 200 PSI Dual Needle Gauge: Electronic switches offer more precise control over manual paddle valves. Control is two way adjustable (front and back). A 200 psi dual needle gauge is also included along with mounting bracket for a clean install.
• Seamless Installation: The Airtech Deluxe control unit offers as simple of an installation as possible. Simply run your air lines to the box and connect 4 wires to our quick disconnect plug, wire up the compressors and relay and you’re done.
• Wireless Remote Control: Adjust your ride height from outside your car with the included wireless remote control.
• Viair 444c Air Compressor: Chosen for reliability and performance, the Airtech Deluxe Air Suspension kit comes with a single Viair 444c Compressor.
• High Pressure Air Bags: Air bags are engineered and designed to match your vehicle. Depending on the type of OEM suspension your vehicle has, sleeve type and double bellow type bags are available. Air pressure directly corresponds with how stiff or soft your car rides – higher psi results in a stiffer ride while lower psi results in a softer ride.
• High Performance Shock Absorbers: All Ksport Air Suspension systems come with the same quality shocks that are standard in our best-selling Kontrol Pro Coilover kits. Air kit shocks have a different internal valving setting to accommodate changes in psi.
• Adjustable Lower Mount: Like our coilover kits, our Air Suspension systems allow the option for further fine tuning of ride height at any psi with an adjustable lower mount. This allows you to get the perfect ride height at almost any psi that you are comfortable driving at.

Benefits

• Wide Range of Height Adjustability: The Airtech Deluxe System offers height adjustment ranging 0 to 120/200mm depending on the vehicle.
• 36-Way Adjustable Damping: All Ksport Airtech Air Suspension kits offer 36 levels of damping which allow you to dial in your air suspension even further. Set damping softer (counterclockwise) or stiffer (clockwise) by simply inserting the included damping knob and turning it either way.
• Easy Installation: Ksport Airtech Deluxe Air Suspension kits are designed for easy bolt-on installation. No modifications to OEM shock absorbers, or OEM top mounts is required. Professional installation is recommended.

Applications

• 2014 - 2018 Infiniti Q50 RWD

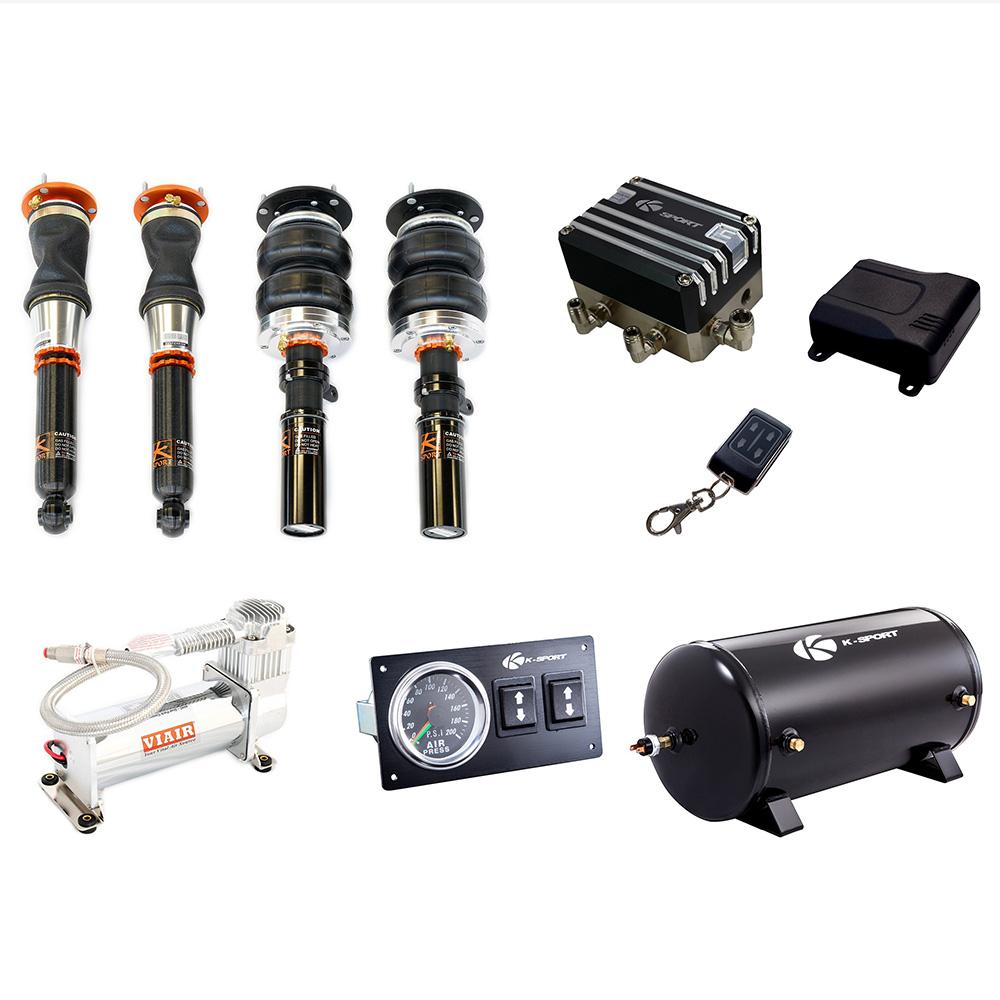

What's In The Box?

• 4 - High performance Ksport shock absorbers with 36 levels of damping and adjustable lower mount
• 4 - High pressure air bags designed and engineered to match your vehicle
• 1 - 5-gallon air tank with 1/4” port (x2) and 3/8” port (x2)
• 1 - Black carpeted mounting board
• 1 - VIAIR 444c compressor
• 1 - 165-200 psi pressure switch
• 2 - 30amp Relay
• 2 - Electronic switch w/mounting plate
• 1 - 200 psi dual needle gauge w/mounting plate
• 1 - Electronic Control Unit
• 1 - Remote Control
• 3 - 6mm 3-direction fitting
• 1 - 10mm L-shape fitting
• 1 - 10mm 1/4″ outer pitch L-shape fitting
• 1 - 6mm 1/8” inner pitch fitting
• 1 - Iron plug
• 1 - 1/8PT to 1/4 pitch fitting
• 1 - 3/8-1/4 fitting
• 1 - 3/8” hose fitting
• 4 - Rivet
• 1 - 25m 1/4″ air line
• 1 - 1m 10mm air line
• 1 - 5m power wire
• 1 - Tool kit including spanner wrenches, damping adjustment knobs & brake line brackets (application specific)
• 1 - Owner’s manual

References

• Installation Instructions

Warranty

• Airtech Deluxe Air Suspension systems come standard with a 12-month warranty which covers manufacturer defects.
