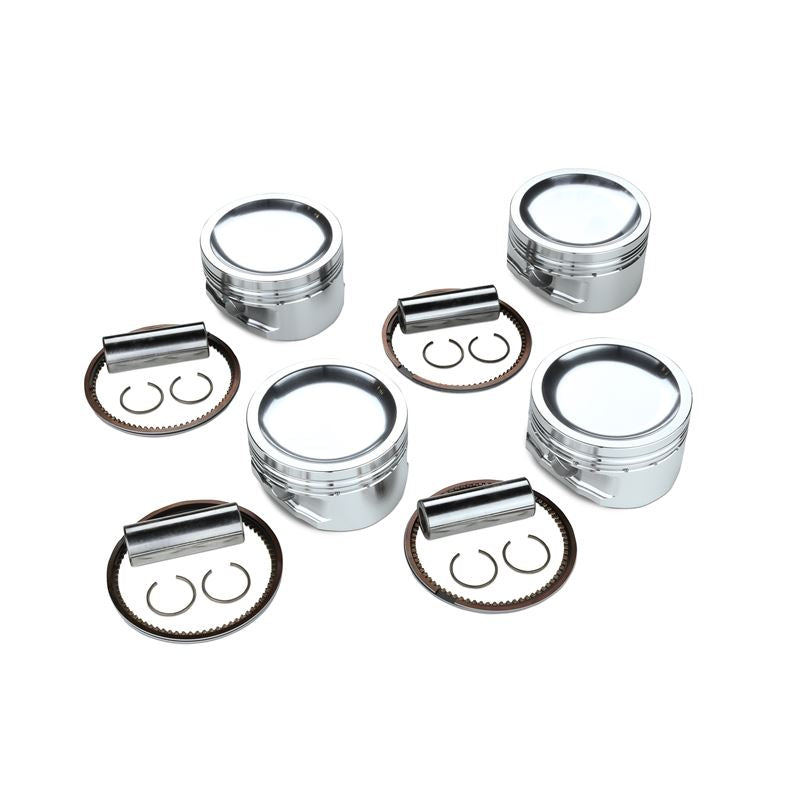

Tomei TA202A-TY03C Forged Piston for 2JZ-GTE 87.00mm CH34.00 (STD)
Boost the resilience and performance of your 2JZ-GTE engine with the Tomei TA202A-TY03C Forged Piston Kit. Engineered for 87.00mm bore and a standard compression height of 34.00mm, these pistons are the foundation for building a robust powerplant capable of handling increased power demands.
Key Features:
- Precision engineered for the iconic 2JZ-GTE engine.
- Forged from high-grade aluminum for exceptional strength under high-stress conditions.
- Standard 87.00mm size matches factory specifications for a seamless fit.
- CH34.00 (STD) compression height maintains optimal clearance and volume within the combustion chamber.
- Designed to enhance the engine's response and power across a broad RPM range.
- Ideal for high-performance street builds and competitive racing applications.
Specifications:
- Part Number: TA202A-TY03C
- Compatible Engine: 2JZ-GTE
- Diameter: 87.00mm
- Compression Height: CH34.00 (STD)
- Material: High-strength forged aluminum
Installation:
The Tomei Forged Pistons are designed for expert installation. Appropriate for professional builders and tuners, these pistons require precise clearance measurements and careful assembly for optimal performance and reliability.
Â
| Application | 2JZ-GTE |
| Type | TOMEI |
| Bore (mm) | 87.00 (OEM +1.0) |
| Pin Diameter (mm) | 22.0 |
| Pin Length (mm) | 60.0 |
| Circlip Inner Diameter (mm) | 22.0 |
| Valve Recess | WITH |
| Compression Height (mm) | 34.00 (OEM ±0.0) |
| Piston Volume (cc) | -14.6 |
| Piston Weight (g) | 369.3 |
| Pin Weight (g) | 121.5 |
| Total Weight (g) | 490.8 |
| Top Ring (mm? | 1.20 x 3.05 |
| Second Ring (mm? | 1.20 x 3.90 |
| Oil Ring (mm? | 2.50 x 2.95 |
| Piston Material | A4032 |
