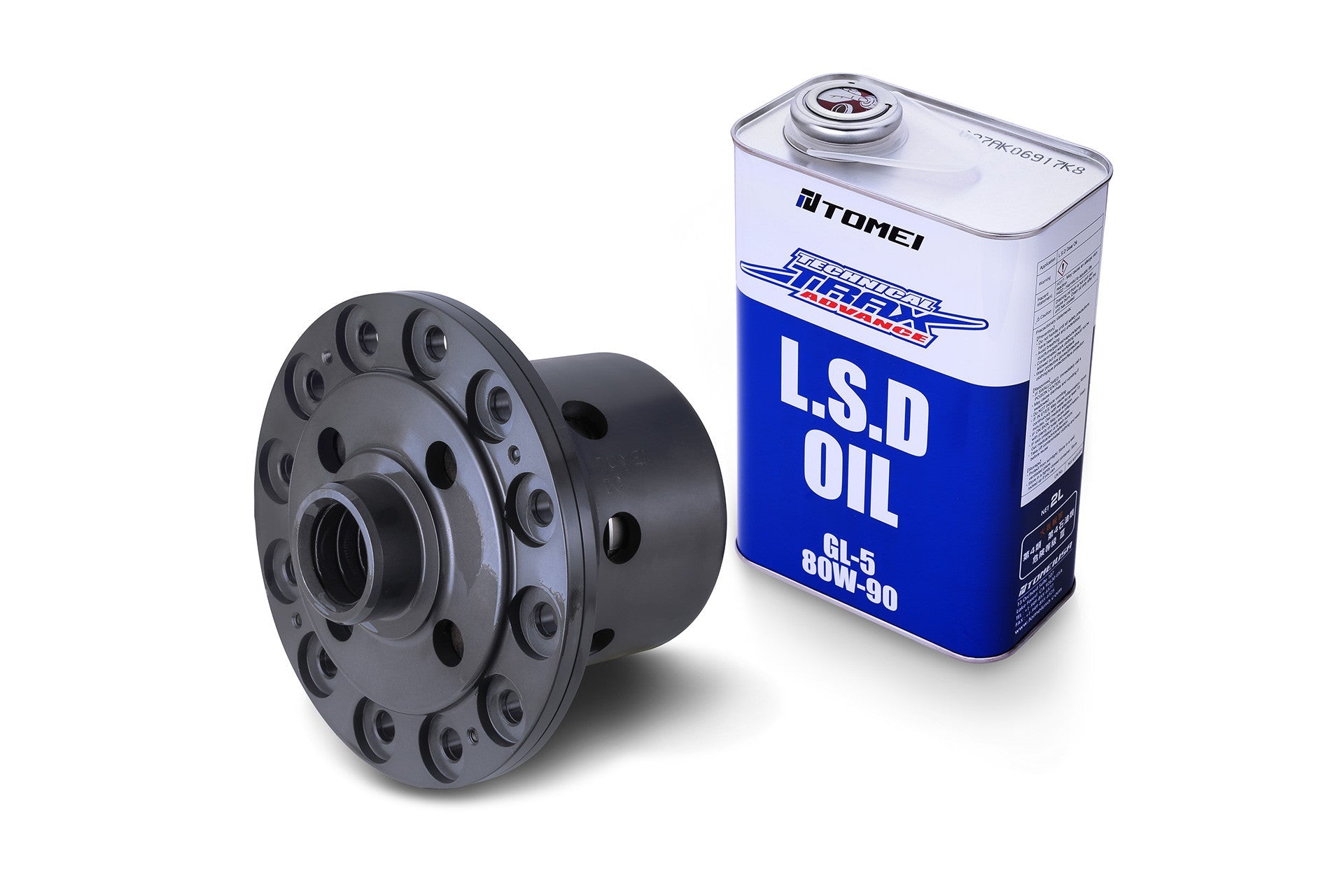

Technical Trax Advance 1.5-Way LSD Pro Kit for 1998-2004 Mazda Miata by Tomei

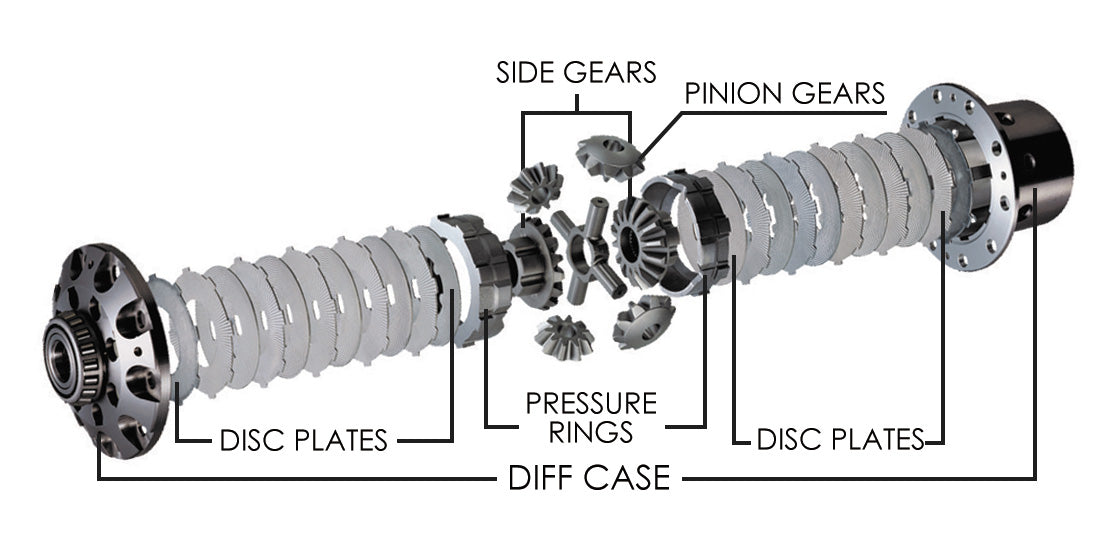

The T-Trax Advance LSD has several advantages over similar products from other manufacturers. It features optimized cam angles, spring discs, larger surface area clutch disc and a higher intial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-Trax Advance offers superior performance in every way.
Features
- Ring Gear Bolt PCD: 134mm

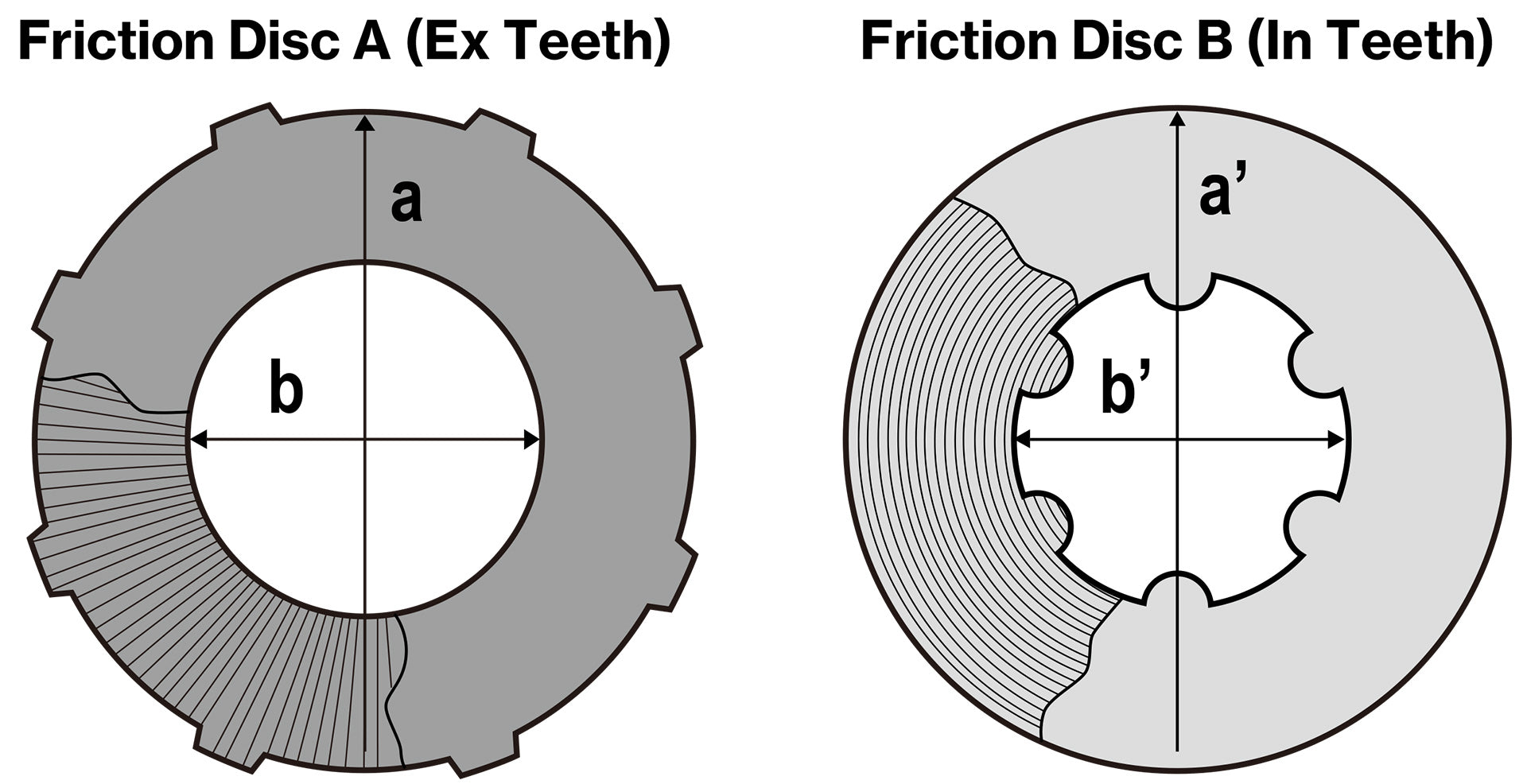

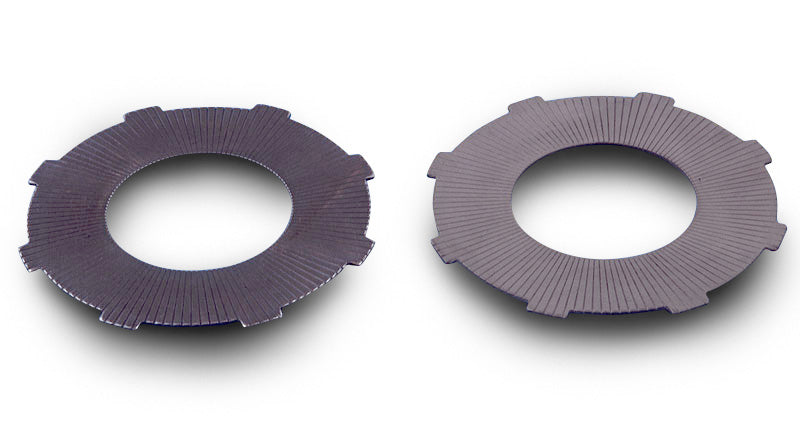

- Disk Diameter: 93mm
- Disk Interior Teeth: 6
- Disk Exterior Teeth: 6
- Thickness: 1.7mm
- Size & Number of Ring Gear Bolts: M10 (10)
- Number of Spline: 26T
- Inner Flange Diameter: 28mm
- Initial Torque(kg/m): 6.0-8.0
- Pressure Ring Cam Angle: 45° x 20°
Benefits
- Utilizes original factory flange
- Quiter and improved efficiency
Applications
What's In The Box?
References
